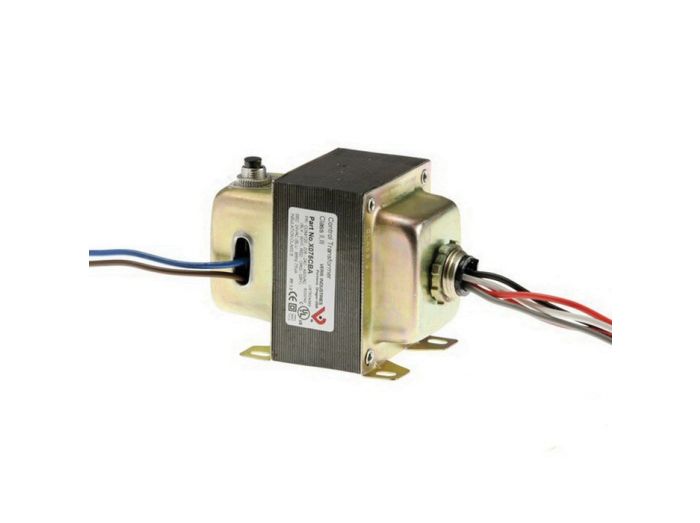

Veris X075CBA Trf 75 VA 120/208/240/480Vac 24Vac

Product Description

The VERIS X075CBA transformer is a convenient source of control power for HVAC control and building automation applications. These UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models. It operates at -40 to 149 °F.

• Threaded hub options maximize installation flexibility
• UL listings for all models simplify panel building requirements
• Suitable for building automation systems

Product Highlights

The Veris X series control transformers are ideal for controller power, driving relays, and powering sensors.

Product Information

Standard Information

• Brand: VERIS
• Manufacturer Part Number: X075CBA

Technical Specifications

• Application: Building Automation Systems
• Current Protection: Circuit Breaker
• Insulation Class: 2
• Model: X075CBA
• Mounting: 1 Hub | 1 Foot
• Operating Temperature: -40 - 149 °F (-40 - 65 °C)
• Power Consumption: 75 VA
• Product Certification: UL | CE
• Product Type: Transformer
• Range: X series
• Secondary Voltage AC Nominal: 24 VAC
• Secondary Voltage AC Range: 24 VAC
• Supply Voltage AC Nominal: 120 VAC | 240 VAC | 277 VAC | 480 VAC
• Manufacturer Part Number: X075CBA
• Manufacturer: Veris Industries
• Product Series: X
• Family Series: Veris Industries Transformers, X Series
• Description: Control Transformer,75VA, 120/208/240/480-24VAC,CB,FT&SNGL HU
• Type: Control
• VA Rating: 75 VA
• Primary Voltage: 120 V, 240 V, 277 V, 480 V
• Secondary Voltage: 24 V
• Enclosed: No
• Termination: Wire Leads
• Approvals: CE, cULus
• VA: 75VA
• Primary: 480V
• Secondary: 24V
