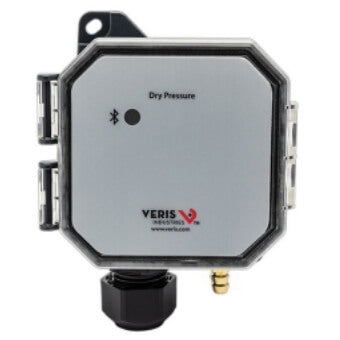

Veris PX3UXN05 Bluetooth Universal 3-Wire Dry Media Differential Pressure/Air Velocity Transducer NIST Certified 0 to 10 WG

Product Description

The Veris PX3UXN05 is a Bluetooth Universal 3-Wire Dry Media Differential Pressure and Air Velocity Transducer. It is designed to measure both air pressure and velocity with ease. Switching between pressure and velocity modes allows for versatile applications including duct static pressure and air flow measurement. The unit features a reliable wireless configuration that can be adjusted via smartphone, eliminating the need for ladders during installation.

• IP65/NEMA 4 environmental rating
• NIST certified with a 16-point calibration
• High reliability sensor technology for maintenance-free operation

Product Highlights

This product is suitable for indoor and outdoor use, making it an ideal choice for both plant room and general monitoring applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: PX3UXN05
• Measurement Range: 0 to 10 in-WG
• Operating Temperature: -20 to 60 °C
• Pressure Measurement Accuracy: +/- 1 % FS
• Output Type: 4...20 mA, 0...5 V DC, 0...10 V DC
• Mounting Mode: Duct, Panel
• Protection Rating: IP65
• Weight: 125 g
