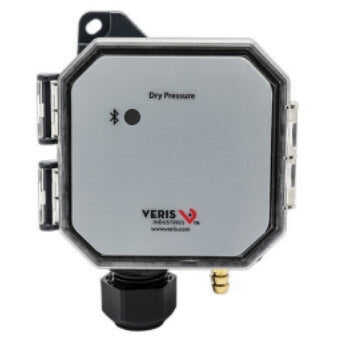

Veris PX3PXX01 Bluetooth Panel 3-Wire Dry Media Differential Pressure/Air Velocity Transducer

Product Description

The Veris PX3PXX01 is a Bluetooth panel-type transducer for measuring air pressure and velocity. It features field-selectable options for static pressure or air flow measurement, making it versatile for various applications.

• Measures air pressure or velocity
• Offers multiple pressure and velocity ranges
• IP65 rated for protection against dust and water

Product Highlights

This transducer is ideal for duct static pressure, building pressure monitoring, and filter status checking. It supports wireless configuration via a smartphone for easy setup and adjustments.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: PX3PXX01

Technical Specifications

• Input Voltage: 12...30 V DC, 24 V AC
• Pressure Measurement Range: 0...0.1 W.C. (0...25 Pa) to 0...1 W.C. (0...250 Pa)
• Measurement Type: Differential pressure
• Calibration Certificate: None
• IP Rating: IP65
• Response Time: Fast
• Height: 4.6 inches
• Width: 2 inches
• Depth: 0.05 inches
• Weight: 0.35 lbs
