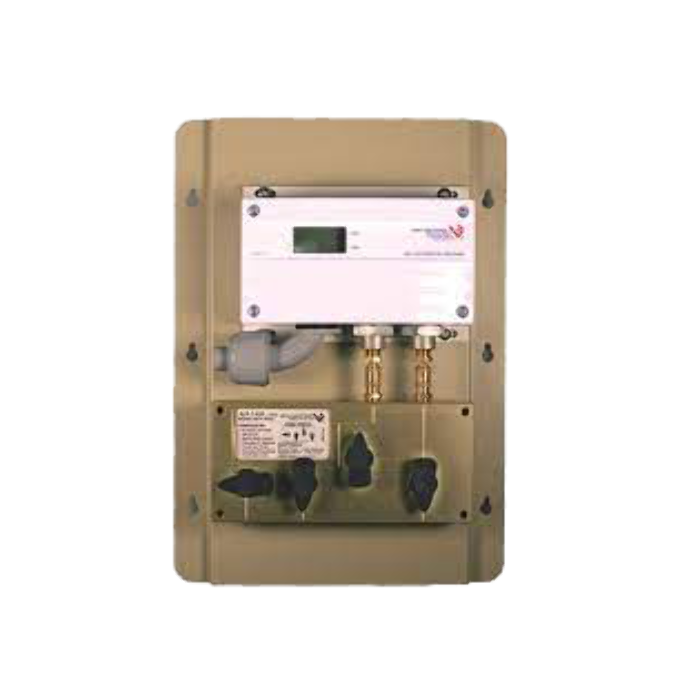

Veris PWLN05BP Wet Differential Pressure Transducer 12 To 30 VDC Or 24 VAC Input

Product Description

The Veris PWLN05BP Wet Differential Pressure Transducer is designed for precise pressure measurement. It offers inputs of twelve to thirty VDC or twenty-four VAC, and outputs of four to twenty mA, zero to five VDC, or zero to ten VDC. The measurement range spans from zero to two hundred fifty psig, making it suitable for various applications.

• Includes LCD display for easy reading.
• NIST certification ensures reliability and accuracy.
• Features a rugged die-cast enclosure for durability.

Product Highlights

This transducer offers flexibility with jumper-selectable output options. It features a dual-color LED indicator for operational status, and its design is compatible with media using seventeen-four PH stainless steel.

Product Information

Standard Information

• Input Voltage: 12 to 30 VDC or 24 VAC
• Output: 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC
• Measurement Range: 0 to 250 psig

Technical Specifications

• Maximum Proof Pressure: 2X full scale range
• Maximum Burst Pressure: 5X full scale range
• Enclosure Rating: NEMA 4
• Zero Adjustment: Pushbutton and remote
• Surge Dampening: Jumper-controlled
• Auto-Zero Calibration: Yes
• Weight: Not specified
• Dimensions: Not specified
