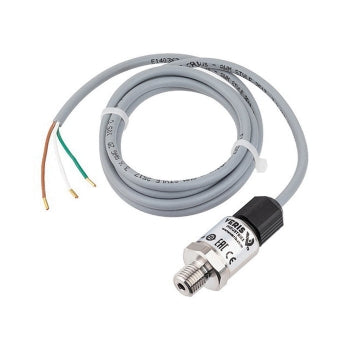

Veris PG07AV Pressure Sensor 0/100 0-10Vdc

Product Description

The Veris PG07AV Pressure Sensor offers reliable pressure sensing capabilities for various industrial applications. With a range of 0 to 100 psi and an output signal of 0-10Vdc, this sensor is well-suited for demanding environments.

• Rugged stainless steel construction
• High accuracy of 1% full scale
• IP67-rated for water and dust resistance

Product Highlights

The Veris PG07AV Pressure Sensor is designed for high-performance pressure measurements in industries such as HVAC, pneumatics, and hydraulics. Its durable construction and compact design ensure long-lasting operation.

Product Information

Standard Information

• Brand: Veris Industries
• Item Number: PG07AV

Technical Specifications

• Measurement Range: 0-100 psi
• Output Signal: 0-10Vdc
• Accuracy: 1% full scale
• Construction: Stainless steel
• Rating: IP67 for water and dust resistance
• Shock: 100G 11ms half sine
• Vibration: 20G peak 20 to 2400Hz
• Operating Temperature Range: -40 to 185 degrees Fahrenheit
• Compensated Temperature Range: 32 to 130 degrees Fahrenheit
• Pressure Port: 1/4 inch NPT Male
• Load Impedance: greater than 100k ohms
