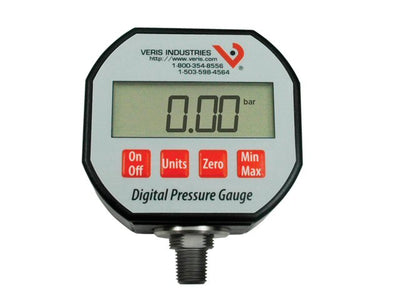

Veris PD250AM Electronic Pressure Sensor Switch Monitoring Air Ducts Fans

Product Description

The Veris PD250AM Electronic Pressure Switch is designed for robust and reliable performance in monitoring air flow and pressure within industrial environments. It features versatile functionality suited for various applications including air ducts and HVAC systems.

• Wide pressure measurement range from -14.7 to 250 psi
• Durable NEMA 4, IP65 polycarbonate housing
• Accuracy is maintained across a broad temperature range from -65 degrees Fahrenheit to 257 degrees Fahrenheit

Product Highlights

This pressure switch is engineered for durability and precision, ensuring over 100 million pressure cycles and burst pressure up to five times the rated pressure or 5,000 psi. It also features a 4-20mA loop-powered output for easy integration into existing systems.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: PD250AM

Technical Specifications

• Pressure Range: -14.7 to 250 psig
• Housing: NEMA 4, IP65 Polycarbonate
• Output: 4-20mA loop powered
• Connection Type: 1/4 inch NPT Male
• Measurement Units: PSI, bar, kg/cm2, atm, in. of Hg, in. of H2O (selectable)
• Accuracy: Includes non-linearity, hysteresis, and non-repeatability
• Temperature Range (Media): -55 degrees to 125 degrees Celsius
• Update Rate: 32 times per second
