Veris Industries V421 Enclosed Relay 24 VAC/DC (208-277VAC) V421

Product Description

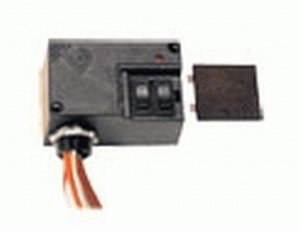

The Veris Industries V421 is an enclosed relay designed for building automation systems. It operates on dual voltage of twenty-four VAC or DC, as well as 208 to 277 VAC. This relay is rated for a maximum switching current of twenty amps at two hundred forty VAC and offers reliable performance with its two-hand operation feature.

• DPST configuration for versatile switching applications
• Includes dual overrides and LED indicator for operational awareness
• Complies with UL standards for safety and reliability

Product Highlights

This relay is ideal for various automation tasks, providing a robust solution for controlling electrical circuits.

Product Information

Standard Information

• Brand: Veris Industries
• Country of Origin: US

Technical Specifications

• Relay Type: Mechanical
• Maximum Switching Current: 20 A at 240 VAC, 8 A at 28 V DC, 14 A at 14 V DC
• Relay Coil Voltage: 208-277 V AC, 24 V AC, 24 V DC
• Operating Temperature: -40 to 40 °C
• Dimensions: 4.0 x 2.04 x 2.5 inches
• Mounting Support: DIN rail or wall
• Product Certifications: UL
