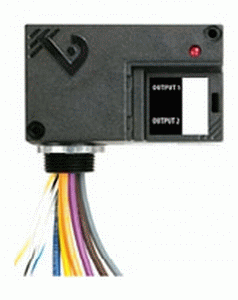

Veris Industries V420 Enclosed Relay DPDT 24 VAC/DC (208-277 VAC)

Product Description

The Veris Industries V420 is an enclosed relay designed for reliable performance in various building automation systems. This relay functions as a Double Pole Double Throw (DPDT) switch and operates at 24 VAC/DC or 208-277 VAC. It has a maximum switching current of twenty amps at 277 VAC and twenty amps at 28 VDC, allowing it to handle significant electrical loads.

• Designed with a built-in LED indicator.
• UL listed for safety and reliability.
• Mounting options include DIN rail and wall.

Product Highlights

The V420 relay is ideal for controlling electrical devices and systems within commercial and industrial settings.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: V420

Technical Specifications

• Relay Type: Mechanical
• Current Ratings: 20 A, 277 V AC; 20 A, 28 V DC
• Relay Coil Voltage: 208-277 V AC; 24 V AC/DC
• Temperature Range: -40 to 40 °C
• Dimensions: Length 4.0 inches, Width 2.04 inches, Height 2.5 inches
• IP Protection: UL certified
• Mounting Options: DIN rail, wall
