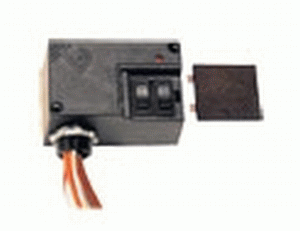

Veris Industries V321 Enclosed Relay Power 120 VAC 24 VAC/DC

Product Description

The Veris Industries V321 is an enclosed relay designed for building automation systems. This DPST relay operates at both twenty-four alternating current direct current (VAC/DC) and one hundred twenty volts alternating current (VAC). The V321 can handle a maximum resistive current of twenty amps at two hundred forty volts AC and is suitable for various applications.

• Dual overrides for increased versatility
• LED indicator for operational status
• UL certified for safety compliance

Product Highlights

Ideal for automation control in buildings, the V321 features dual overrides, making it adaptable for different settings.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Relay Type: Mechanical
• Operating Voltage: 120 VAC, 24 VAC/DC
• Maximum Switching Current: 14 A at 14 V DC, 20 A at 240 V AC, 8 A at 28 V DC
• Switch Function: DPST
• Ambient Air Temperature for Operation: -40 to 40 °C
• Dimensions: 4.0 x 2.04 x 2.5 inches
• Mounting Support: DIN rail or wall
