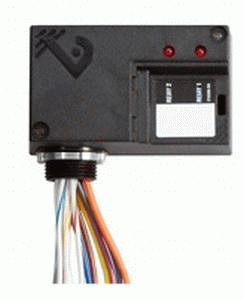

Veris Industries V200D Enclosed Relay 2-SPDT 10-30 VAC/DC 208-277 VAC

Product Description

The Veris Industries V200D is an enclosed relay designed for various automation applications. It operates within a voltage range of ten to thirty VAC/DC and is compatible with voltages up to two hundred seventy-seven VAC. This relay supports a maximum current of ten amps, which is suitable for resistive loads. The device also features LED indication to provide clear operational status.

• Relay Type: 2-SPDT
• Operating Voltage: 10-30 VAC/DC
• Maximum Current: 10 A at 277 VAC

Product Highlights

This product is built for reliability in building automation systems and meets UL certification standards.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Operating Voltage: 10-30 VAC/DC, 208-277 VAC
• Maximum Switching Current: 10 A
• LED Indication: Yes
• Dimensions: 4.0 x 2.04 x 2.50 inches
• Mounting Support: DIN rail, wall
• Temperature Range for Operation: -40 to 55 °C
• Product Certifications: UL
