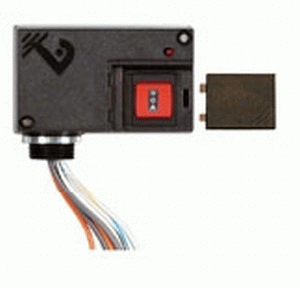

Veris Industries V122 Enclosed Relay SPST 24 VAC/DC 120 VAC

Product Description

The Veris Industries V122 Enclosed Relay is designed for use in building automation systems. This single-pole, single-throw (SPST) relay operates at both twenty-four volts alternating current/direct current (VAC/DC) and one hundred twenty volts alternating current (VAC). It can handle a maximum resistive load of twenty amps at two hundred forty volts alternating current and eight amps at twenty-eight volts direct current.

This relay features a manual HOA switch and a resistive HOA monitor, making it suitable for various control applications. An LED indicator provides clear feedback on the relay's status. The compact design allows for easy mounting either on a DIN rail or wall.

• SPST configuration
• Operating temperature range: -40 degrees Celsius to 55 degrees Celsius
• Dimensions: Four inches long, two point zero four inches wide, and two point five inches high

Product Highlights

The Veris V122 is ideal for HVAC control and other applications requiring reliable switching capabilities.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: V122
• Relay Type: Mechanical
• Maximum Switching Current: 20 A at 240 V AC
• Relay Coil Voltage: 120 V AC, 24 V AC, 24 V DC
• Product Certifications: UL
• Mounting Support: DIN rail, wall
• Operating Temperature: -40 degrees Celsius to 55 degrees Celsius
