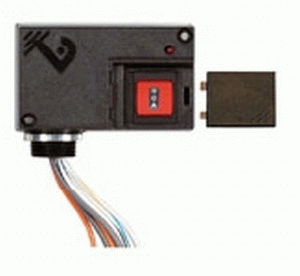

Veris Industries V102 Enclosed Relay 10-30 VAC/DC 120 VAC

Product Description

Veris Industries V102 is an enclosed relay suitable for various building automation systems. This relay features a two-single pole single throw (2-SPST) design and operates at voltages between ten and thirty VAC/DC, as well as 120 VAC. The relay can handle a maximum resistive load of ten amps at 277 VAC, making it a reliable choice for numerous electrical applications.

• Independent HOA switches
• Resistive HOA monitor
• LED indicator for status visualization

Product Highlights

The V102 relay supports efficient control in building systems, providing clear status indication and flexible switching capabilities.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Relay Type: Mechanical
• Switch Function: SPST
• Rated Voltage: 10-30 V AC / 10-30 V DC / 120 V AC
• Maximum Switching Current: 10 A, 250 V AC
• Operating Temperature Range: -40 to 55 °C
• Dimensions: 4.0 x 2.04 x 2.50 inches
• Mounting Support: DIN rail and wall
• Product Certifications: UL
