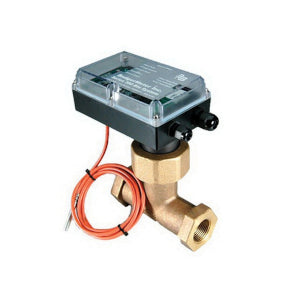

Veris Industries U001-0155 Hot and Cold Service BTU System Tee Meter 1 in

Product Description

The Veris Industries U001-0155 is a hot and cold service BTU system tee meter designed for flow and BTU determination. This device features ModBus and BACnet communication capabilities, making it suitable for various building management systems. The meter is field programmable and constructed from brass and polymer materials, ensuring durability in demanding environments.

• Application: Flow and BTU determination
• Communication: ModBus (RTU) | BACnet (MS/TP)
• Field Programmable: Yes

Product Highlights

This device accurately measures flow with an accuracy of ±2% and a repeatability of ±0.5%. It accommodates flow rates ranging from 2.7 to 40.5 GPM (ten to one hundred fifty-three LPM) and operates effectively within a temperature range of twenty to two hundred sixty degrees Fahrenheit (-six point seven to one hundred twenty-six point seven degrees Celsius).

Product Information

Standard Information

• Brand: Veris Industries
• Model: 3802010-1203

Technical Specifications

• Fitting Material: Brass | Polymer
• Fitting Size: 1 inch NPT
• Flow Sensor Type: Impeller
• Operating Fluid Temperature: 20-260 °F
• Output Specifications: Scaled Pulse
• Pipe Material: Copper | Polymer | Steel | Stainless Steel
• Standards: IEC 751 Class B
• Communication Protocol: Modbus Plus | BACnet MS/TP
• Service Life: 1 year
