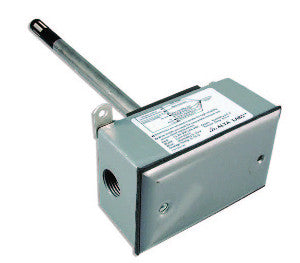

Veris Industries TDDAM22 Temperature Sensor Duct Mount 4-20mA Output

Product Description

The Veris Industries TDDAM22 is a temperature sensor designed for duct mounting. This sensor features a diecast box housing and a 4 to 20 milliamp output, making it suitable for various HVAC applications. The measurement range extends from zero degrees to fifty degrees Celsius, which is equivalent to thirty-two degrees to one hundred twenty-two degrees Fahrenheit. The sensor is calibrated at two points, ensuring accurate readings in diverse environments.

• Duct mount installation
• 4-20mA output for flexible integration
• Temperature range of 0°C to 50°C (32°F to 122°F)

Product Highlights

This temperature sensor is ideal for monitoring air temperature in HVAC systems. Its robust design and reliable performance make it suitable for use in plant rooms and other industrial settings.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: TDDAM22

Technical Specifications

• Output Type: 4-20mA
• Temperature Range: 0°C to 50°C (32°F to 122°F)
• Calibration: 2-point
• Dimensions: 51 mm (depth) x 109 mm (height) x 69 mm (width)
• Material: Stainless steel enclosure
• Installation Location: Duct
• Weight: 468.18 g
