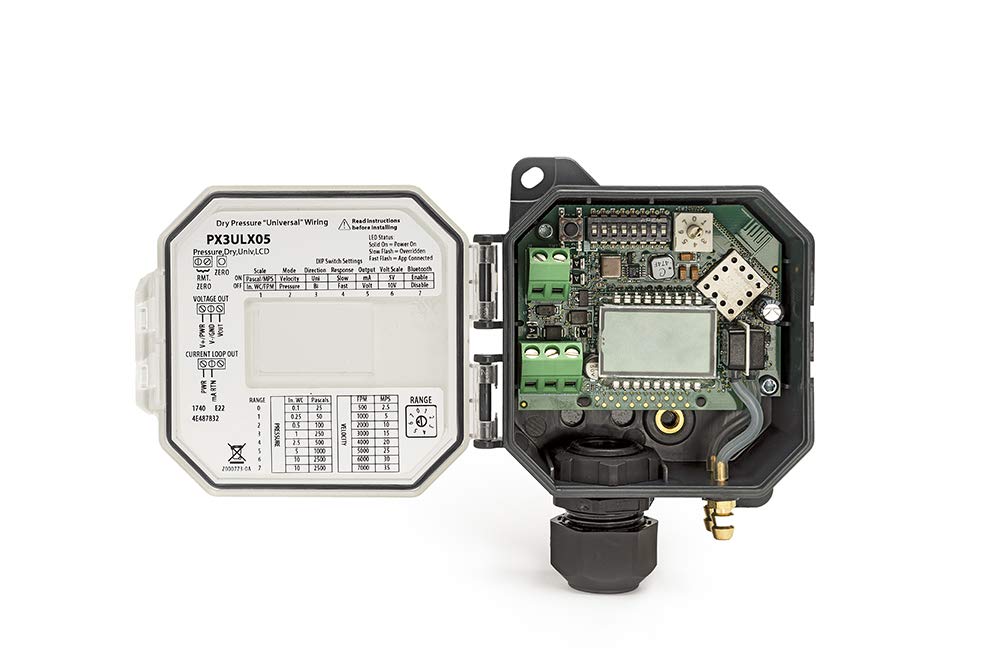

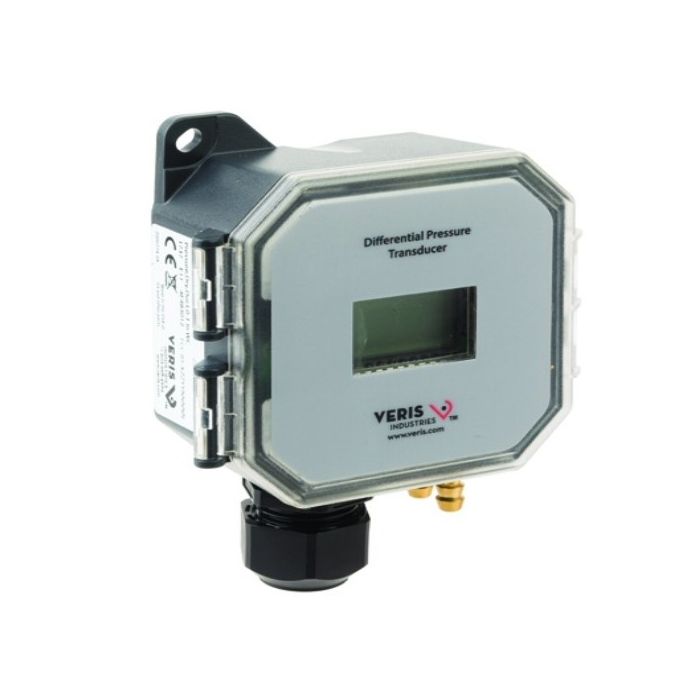

Veris PX3ULX05 Differential Pressure Transducer

Product Description

The Veris Industries PX3ULX05 is a state-of-the-art differential pressure transducer efficiently designed for a wide range of industrial and HVAC applications. Equipped with versatile features like dual-mode operation for both pressure and air velocity, this device offers seamless integration in varied environments.

• Integrated LCD for real-time data monitoring
• IP65/NEMA 4 rated for superior protection against environmental factors
• Field-selectable ranges for versatile application in pressure and velocity measurements

Product Highlights

This transducer is engineered for reliability and accuracy with a switchable mode between unidirectional and bidirectional operations, providing enhanced control and measurement precision. Offering a robust response time and exceptional operating temperature range, the PX3ULX05 ensures optimal performance in diverse conditions.

Product Information

Standard Information

• Weight: 0.36 pounds
• Width: 8.01 inches
• Height: 8.01 inches

Technical Specifications

• Operating Environment: 32 to 140 degrees Fahrenheit, up to 90% relative humidity non-condensing
• Pressure Range: 0 to 10 inches water column
• Output: Selectable 0-5V/0-10V & 4-20mA
• Accuracy: +/-1% Full Scale
