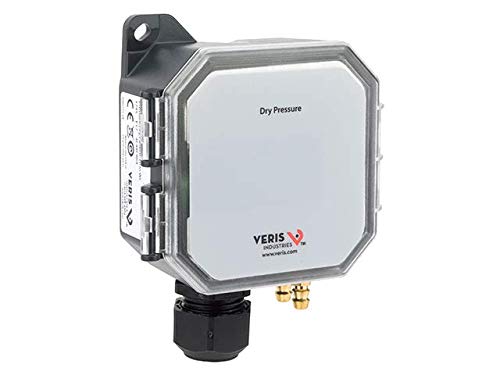

Veris PX3PXX01 Electronic Pressure Sensor for HVAC

Product Description

The Veris PX3PXX01 is an advanced electronic pressure sensor designed for accurate air pressure measurement in HVAC applications. This sensor is capable of handling both air pressure and velocity measurements, making it versatile for various monitoring requirements in air ducts, filters, and fans.

• Switch selectable modes for unidirectional or bidirectional functionality.
• Robust design with IP65/NEMA 4 rating, ensuring durability in harsh environments.
• Easy configuration and monitoring via smartphone, enhancing operational efficiency.

Product Highlights

This sensor features a high reliability sensor technology that ensures long-term, maintenance-free operation. It comes with adjustable pressure ranges and is equipped with a digital display for easy reading. Its compatibility with dry air or inert gases extends its utility across different mediums.

Product Information

Standard Information

• Brand: Veris
• MPN: PX3PXX01

Technical Specifications

• Pressure Ranges: Unidirectional: 0.1/0.25/0.5/1.0 inch W.C.; Bidirectional: ±0.1/±0.25/±0.5/±1.0 inch W.C.
• Response Time: Standard - 20 seconds; Fast - 2 seconds
• Operating Environment: 0° to 60°C (32° to 140°F); 0 to 90% RH non-condensing
• Output: Field-selectable 2-wire loop-powered 4-20mA or 3-wire 0-5V/0-10V
• Accuracy: ±1% F.S. of selected range
• Dimensions: Height - 7.4 inches, Length - 3.46 inches, Width - 4.41 inches
• Weight: 0.28 lbs
