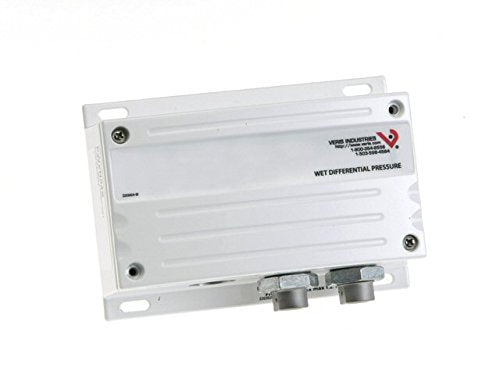

Veris PWXX05S Pressure Transducer 0-250 PSID NEMA 4 Wet Environment

Product Description

The Veris PWXX05S Pressure Transducer is designed for precise pressure measurement in wet environments. Ideal for HVAC and industrial applications, this transducer operates within a 0-250 PSID range and features a NEMA 4 rating for moisture protection.

• Highly accurate pressure readings in diverse conditions.
• Robust NEMA 4 rated enclosure ensures durability against environmental elements.
• Versatile 4-20mA output compatible with most monitoring systems.

Product Highlights

This transducer is engineered for reliability and accuracy, equipped with a dual-color LED status indicator and electronic surge damping for stable readings. It is optimal for use across pumps, filters, and HVAC systems.

Product Information

Standard Information

• Type: Pressure Transducer
• Range: 0-250 PSID

Technical Specifications

• Input Power: 12 to 30VDC/24VAC nominal
• Maximum Current Draw: DC: 125mA; AC: 280mA
• Output: 3-wire transmitter; user selectable 4-20mA (clipped and capped)/0-5V/0-10V
• Accuracy: ±1% Full Scale
• Surge Damping: Electronic; 5-second averaging
• Housing Material: White powder-coated aluminum
• Sensor Media Compatibility: 17-4 PH stainless steel
