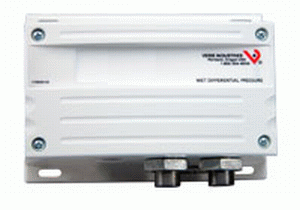

Veris Industries PWXN04S Differential Air Pressure Transducer 0-100psig

Product Description

The Veris Industries PWXN04S is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. This transducer features a three-wire design and is suitable for wet media applications. It is compact and simplifies installation, providing reliable measurements for various uses.

• Measurement Range: 0 to 100 psi
• Accuracy: ±1% FS
• IP65 Rated for dust and water protection

Product Highlights

The PWXN04S offers accurate readings for a wide range of applications, making it suitable for industrial environments and HVAC systems.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: PWXN04S
• Country of Origin: US

Technical Specifications

• Type of Measurement: Differential pressure
• Pressure Measurement Range: 0...100 psi
• Ambient Air Temperature for Operation: -10 to 50 °C
• Output Type: 4...20 mA, 0...5 V DC, 0...10 V DC
• Fitting Size: 1/8 NPT
• Burst Pressure: 500 psig (34 bar)
• Device Application: Pump and compressor differential pressure
• Panel Mounting
• Local Signalling: Red/green LED
• Product Certifications: CE
