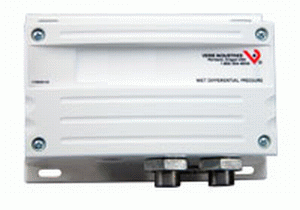

Veris Industries PWXN03S Differential Air Pressure Trans: 0...50psig

Product Description

The Veris Industries PWXN03S is a differential air pressure transducer used for monitoring air ducts, filters, and fans. This sensor is designed to deliver high accuracy and reliability in various applications.

• 3-wire configuration for easy installation.
• Measurement range from 0 to 50 psi.
• Compatible with pump, compressor, and chiller applications.

Product Highlights

The PWXN03S is suitable for wet media and is ideal for plant room environments. It features a NIST calibration and IP65 protection rating, ensuring durability and performance.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: PWXN03S

Technical Specifications

• Pressure Measurement Range: 0...5 psi, 0...10 psi, 0...25 psi, 0...50 psi
• Accurate Range: +/- 1 % FS, +/- 1.5 % FS, +/- 2 % FS
• Burst Pressure: 250 psig
• Ambient Temperature: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Output Type: 4...20 mA, 0...5 V DC, 0...10 V DC
• Wiring Technique: 3-wire
