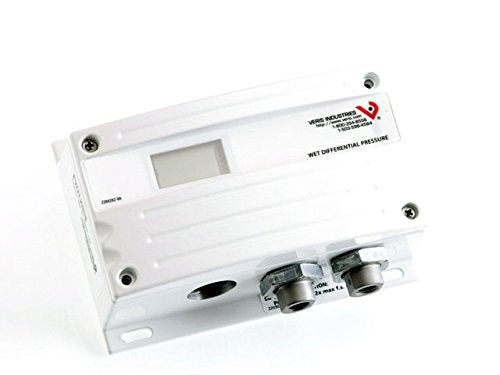

Veris PWLX04S Pressure,Wet,NEMA 4,LCD,0-100PSID

Product Description

The Veris PWLX04S is a wet media differential pressure transducer designed for industrial applications. This model operates within a pressure range of zero to one hundred psi and features an LCD for clear visibility of pressure readings.

• Durable NEMA 4 enclosure for protection in harsh environments.
• Integrated jumper-selectable port swap feature.
• Pushbutton zero adjustment for easy calibration.

Product Highlights

The PWLX04S offers reliable pressure measurement across various media types. The device is suitable for applications including pumps, filters, and heat exchangers.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: PWLX04S

Technical Specifications

• Pressure Range: 0-100 psi
• Input Voltage: 12 to 30 VDC / 24 VAC
• Output: 4 to 20 mA / 0 to 5 V / 0 to 10 V
• Connection Size: 1/8 NPT
• Weight: 1.9 pounds
• Dimensions: 6.55 x 6.2 x 3.1 inches
• Operating Temperature Range: 14°F to 122°F
