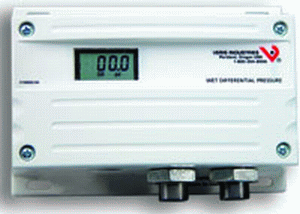

Veris Industries PWLN03S Differential Air Pressure Transducer Power 0-50psig

Product Description

The Veris Industries PWLN03S is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. This sensor provides accurate measurement of differential pressure across pumps, filters, heat exchangers, and compressors for non-corrosive wet media applications. With a measurement range that supports various pressures, this device is essential for HVAC and refrigeration systems.

• Measures differential pressure in wet media.
• NIST calibration ensures reliable performance.
• Ideal for monitoring chiller and compressor pressure.

Product Highlights

This transducer features a microprocessor-based sensor for high accuracy and stability. It is easy to install, providing significant savings in installation costs. The product is equipped with a clear LCD display for real-time monitoring.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: PWLN03S

Technical Specifications

• Type of Measurement: Differential pressure
• Pressure Measurement Range: 0...50 psi
• Accuracy: +/- 1 % FS
• Display Size: 17 x 36 mm
• Output Type: 4...20 mA / 0...5 V DC / 0...10 V DC
• IP Degree of Protection: IP65
• Ambient Air Temperature for Operation: -10 to 50 °C
• Burst Pressure: 250 psi (17 bar)
• Fitting Size: 1/8 NPT
