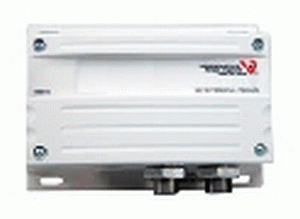

Veris Industries PW2XN05S Differential Air Pressure Transducer 4 to 20 mA 0-250 psig

Product Description

The Veris Industries PW2XN05S is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. With a 4 to 20 mA output, this reliable unit is ideal for various applications including pressure measurements in pumps, compressors, and heat exchangers.

• Microprocessor profiled sensors
• NIST certified
• IP65 rating for dust and moisture protection

Product Highlights

This transducer provides installation efficiency and accuracy, making it suitable for both plant rooms and industrial environments.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: PW2XN05S
• Analog Output Type: 4 to 20 mA
• Pressure Measurement Range: 0 to 250 psi (0 to 17 bar)
• Pressure Measurement Accuracy: +/- 1 % FS
• Maximum Pressure: 1250 psig (85 bar)
• Fitting Size: 1/8 NPT, female
• Ambient Temperature for Operation: -10 to 55 °C
• Relative Humidity for Operation: 0 to 90 % RH, non-condensing
• Standards: EN 61000-6-1
• Weight: 863.64 g
• Dimensions: Width 147 mm, Height 102 mm, Depth 56 mm
