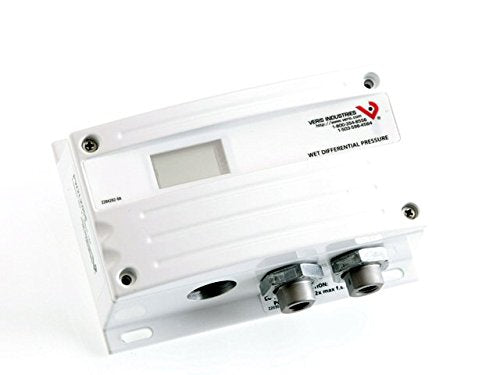

Veris PW2LX03S Pressure Wet 2 Wire NEMA 4 LCD 0-50PSID Transducer

Product Description

The Veris PW2LX03S is a robust pressure transducer designed for accurate pressure measurements in non-corrosive wet media applications. This device is integral for maintaining optimal operation in systems like chillers, boilers, and HVAC units.

• Featuring a dual sensor design for enhanced resistance to overpressure.
• Jumper-selectable outputs for application versatility (normal or reverse operation).
• Product housing is white powder-coated aluminum, ensuring durability in harsh environments.

Product Highlights

Veris Industries' PW2LX03S model excels in providing reliable and precise pressure readings required for critical HVAC applications. Key features include selectable pressure ranges and electronic surge damping.

Product Information

Standard Information

• MPN: PW2LX03S
• Brand: Veris

Technical Specifications

• Pressure Ranges: 0-5, 0-10, 0-25, 0-50 psid
• Output Signal: 4-20mA
• Housing Material: 17-4 PH stainless steel compatible
• Accuracy: ±1% F.S. for ranges AB, ±2% F.S. for range D
• Operating Temperature: -10 to 55°C
• Proof Pressure: Maximum 2x selected range
• Burst Pressure: Maximum 5x selected range
