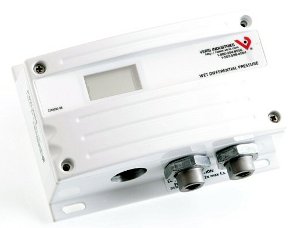

Veris Industries PW2LN04S Differential Air Pressure Trans: 0-100 psi/6.89 bar

Product Description

The Veris Industries PW2LN04S is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. This device operates within a range of zero to one hundred psi, or six point eight nine bar. It features a two-wire, four to twenty milliamp output, which provides reliable data on your pressure measurements.

• Operating range of 0-100 psi
• IP65 enclosure rating for protection
• NIST certified for accuracy

Product Highlights

This pressure transducer is suitable for use in various conditions, including temperature ranges from negative ten to fifty-five degrees Celsius. It is ideal for applications in plant rooms and features a panel mounting support for easy installation.

Product Information

Standard Information

• Brand: Veris Industries
• Country of Origin: US

Technical Specifications

• MPN: PW2LN04S
• Accuracy: +/- 1 % FS for ranges A/B/C
• Ambient Temperature for Operation: -10 to 55 °C
• Output Type: 4-20 mA
• Burst Pressure: 500 psig (34 bar)
• IP Rating: IP65
• Pressure Measurement Range: 0...100 psi (0...7 bar)
• Weight: 863.64 g
• Dimensions: 147 mm (W) x 102 mm (H) x 56 mm (D)
