Veris Industries H922060A Current Sensor 0-5VDC (0-60 Amperage Range) Replacement MPN

Product Description

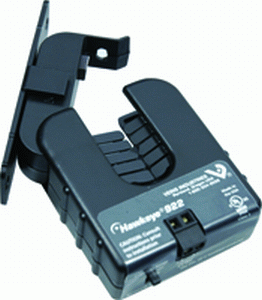

The Veris Industries H922060A is a current sensor designed for building automation. It provides a 0 to 5 volts DC analog output and measures an amperage range of zero to sixty. The sensor features a split-core housing making it easy to install and connect without disrupting the circuit. It is CE certified and suitable for a variety of applications including HVAC and energy monitoring systems.

• 0-5VDC Analog Output
• 0-60 Amperage Range
• Split-Core Housing

Product Highlights

This current sensor is particularly effective in monitoring AC current in building management applications.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: H922060A

Technical Specifications

• Type of Measurement: AC current
• Current Measurement Range: 0...60 A
• Output Type: 0...5 V DC
• Accuracy: +/- 2 % of full scale above 80 A
• Operating Temperature: -15 to 60 °C
• Relative Humidity: 10-90 % RH, non-condensing
• Mounting Support: Split-core housing
