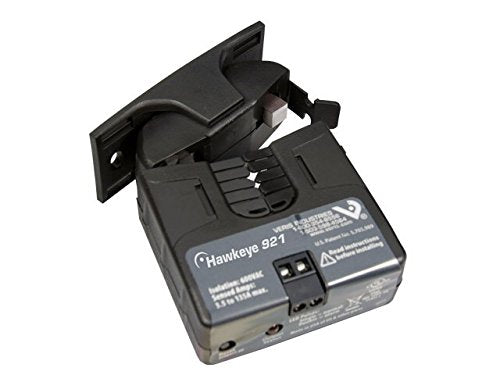

Veris H921 LV Instrument Current Transformer 0-30/60/120A 4-20mA Output

Product Description

The Veris H921 is a robust Low Voltage (LV) instrument current transformer, offering a 4-20mA analog output and a selectable amp range of 0-30/60/120A. Perfect for applications in both industrial and scientific settings, this transformer features a split-core housing for easy installation and is UL listed to ensure safety and reliability in various environments.

• Field selectable Amp ranges enable flexibility across different applications.
• Split-core housing design facilitates easy and swift retrofit installation.
• UL Listing guarantees safety for use on 75 degrees Celsius insulated conductors.

Product Highlights

Equipped with a terminal block that accommodates up to 14 AWG wire and ensures a secure connection with nominal 4 inch-lbs torque. Its accuracy of ±2% FS from 10% to 100% of selected range provides reliable and precise readings, essential for monitoring electrical loads efficiently.

Product Information

Technical Specifications

• Brand: Veris
• MPN: H921
• Output Type: 4-20mA Analog
• Amp Range: 0-30/60/120A, selectable
• Housing: Split-Core
• Temperature Range: -15 to 60 degrees Celsius
• Humidity Range: 10-90% RH non-condensing
• Safety Certification: UL 508
