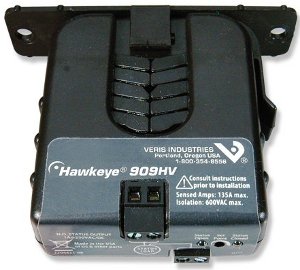

Veris Industries H909HV Current Switch Adjustable Trip Point 2.5-135 Amp Range

Product Description

The Veris Industries H909HV is a current switch designed for adjustable trip points and a wide amperage range. It operates effectively in building automation systems and is suitable for various electrical applications.

• Adjustable trip point from 2.5 to 135 Amps
• Normally open design with a minimum trip point of 2.5A
• Split-core housing for easy installation

Product Highlights

The device features a sensor powered by the monitored conductor, ensuring efficiency and reliability in operation.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Current Measurement Range: 2.5 to 135 A
• Output Current: 1 A at 250 V AC
• Insulation Class: 600VAC RMS
• Temperature Range: -15°C to 60°C (5°F to 140°F)
• Humidity Range: 10-90% RH, non-condensing
• Hysteresis: 10% (typical)
• Frequency Range: 50/60 Hz
• Terminal Block Maximum Wire Size: 14 AWG
