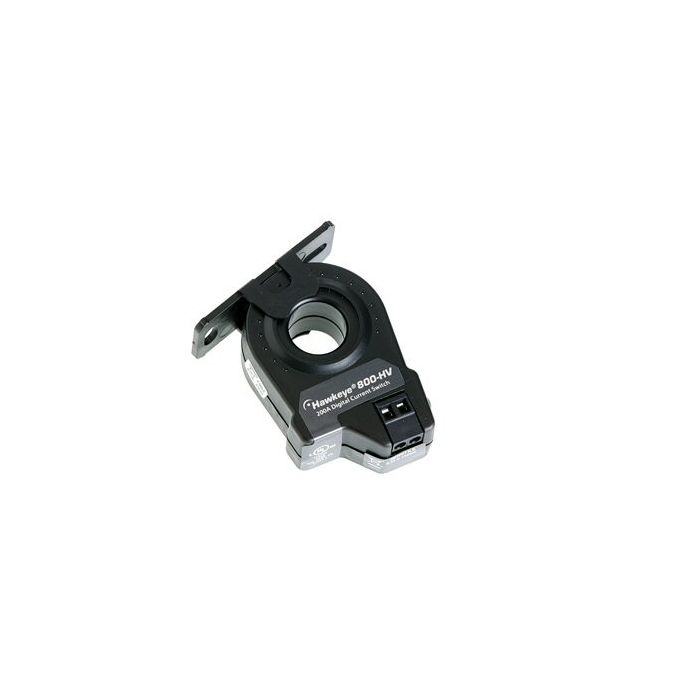

Veris H800-HV Current Switch Solid Core 250V

Product Description

The Veris H800-HV solid core current switch is engineered to deliver reliable and precise current detection. Ideal for applications within industrial settings, this switch facilitates robust performance across a range of electrical loads.

• Optimized for scenarios demanding consistent current monitoring.
• Ensures operational reliability across temperatures from -40 to 167 degrees Fahrenheit.
• Equipped with an insulation class of 600VAC RMS, ensuring safety and compliance.

Product Highlights

This Veris current switch features a fixed normally open contact point and supports up to 250V, making it suitable for heavy-duty applications. It is encased in a solid core unit, enhancing its durability and efficiency.

Product Information

Standard Information

• Weight: 1 pound
• Dimensions: 8.01 x 8.01 x 8.01 inches

Technical Specifications

• Insulation Class: 600VAC RMS UL, 300VAC RMS CE
• Frequency Range: 50/60 Hz
• Temperature Range: -40 to 167 degrees Fahrenheit
• Humidity Range: 10-90% RH non-condensing
• Terminal Block Maximum Wire Size: 14 AWG
• Terminal Block Torque (nominal): 4 in-lbs
• Agency Approvals: UL 508, CE: EN61010-1:2001-02 CAT III
