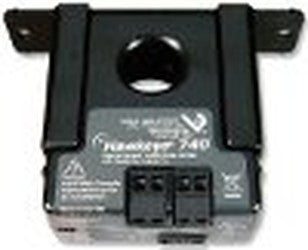

Veris Industries H740 Current Switch w/Relay 0.5-200 Amp

Product Description

The Veris Industries H740 is a current switch with relay designed for monitoring AC current levels. It has a fixed trip point and operates in the range of 0.5 to 200 Amps. This device features a normally open relay with a maximum output of 1.0A at thirty volts AC or DC. The H740 is suitable for building automation systems and uses solid-core housing for durability.

• Fixed trip point for reliable operation
• Input voltage of twenty-four VAC or DC
• Low minimum trip point of 0.5A

Product Highlights

Ideal for integration into various automation systems, the H740 offers a user-friendly design combined with essential performance metrics.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: H740

Technical Specifications

• Current Measurement Range: 0.5 to 200 A
• Output Current: 1 A at 30 V AC/DC
• Relay Coil Voltage: 24 V AC/DC
• Temperature Range: -15 to 60 degrees C
• Humidity Range: 10-90% RH, non-condensing
• Agency Approvals: UL 508
• Mounting Mode: Solid-core housing
• Terminal Block Maximum Wire Size: 14 AWG
