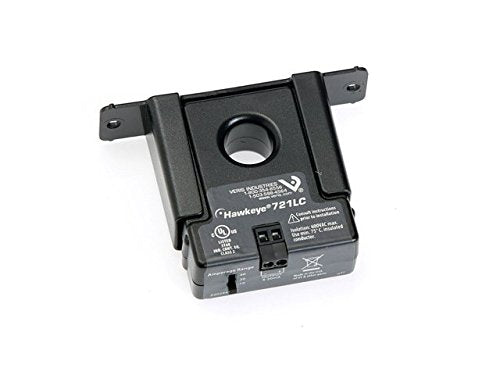

Veris H721LC LV Instrument Current Transformer 0-10/20/40A 4-20mA Output

Product Description

The Veris H721LC Current Transformer provides a reliable solution for monitoring electrical currents in low voltage instruments, offering a range of 0 to 40 amperes. This transformer is designed for use in industrial and scientific applications where accurate data is critical.

• Solid-core housing for enhanced durability.
• UL listed and CE approved, ensuring compliance with quality standards.
• Four to twenty milliampere analog output for straightforward integration with existing systems.

Product Highlights

The Veris H721LC excels in precision with its ability to handle a broad amperage range, making it suitable for various applications from motor control to HVAC systems. It features a compact design with a robust solid-core housing that is easy to install and configure.

Product Information

Standard Information

• Brand: Veris
• MPN: H721LC

Technical Specifications

• Output Type: 4-20mA Analog Output
• Amperage Range: 0-10/20/40A
• Response Time: 2 seconds
• Temperature Range: -15°C to 60°C
• Humidity Range: 10-90% RH non-condensing
• Accuracy: ±2% FS from 10% - 100% of selected range
• Wire Size: Maximum 14 AWG
• Torque: 4 in-lbs
