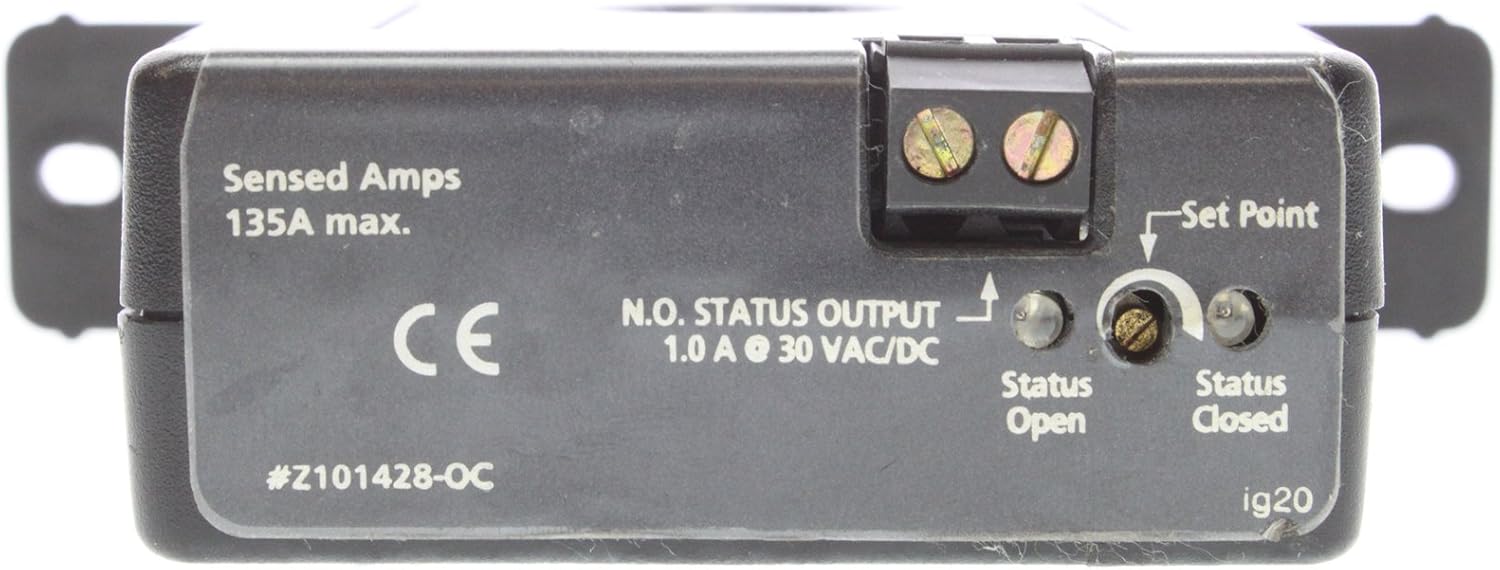

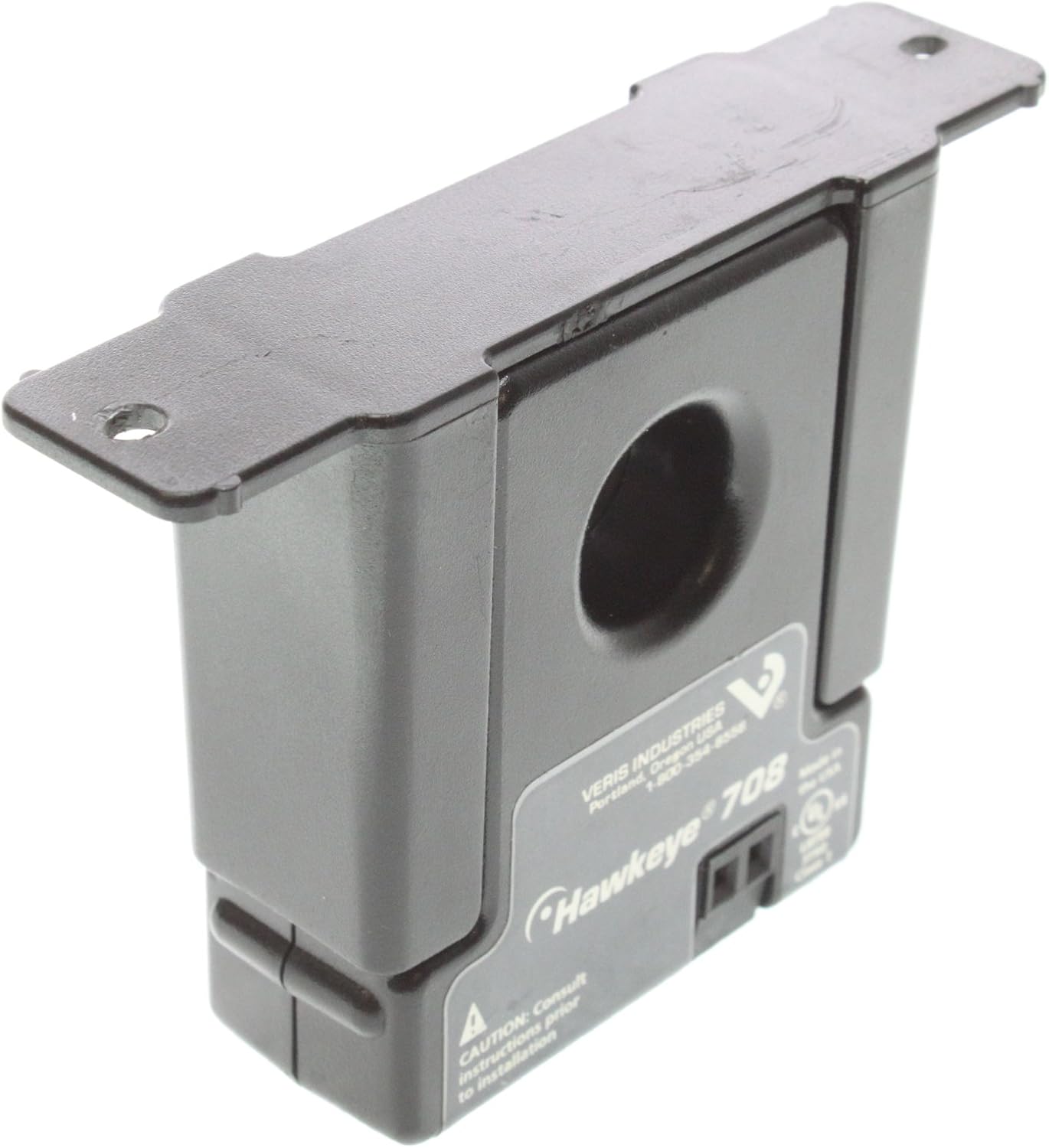

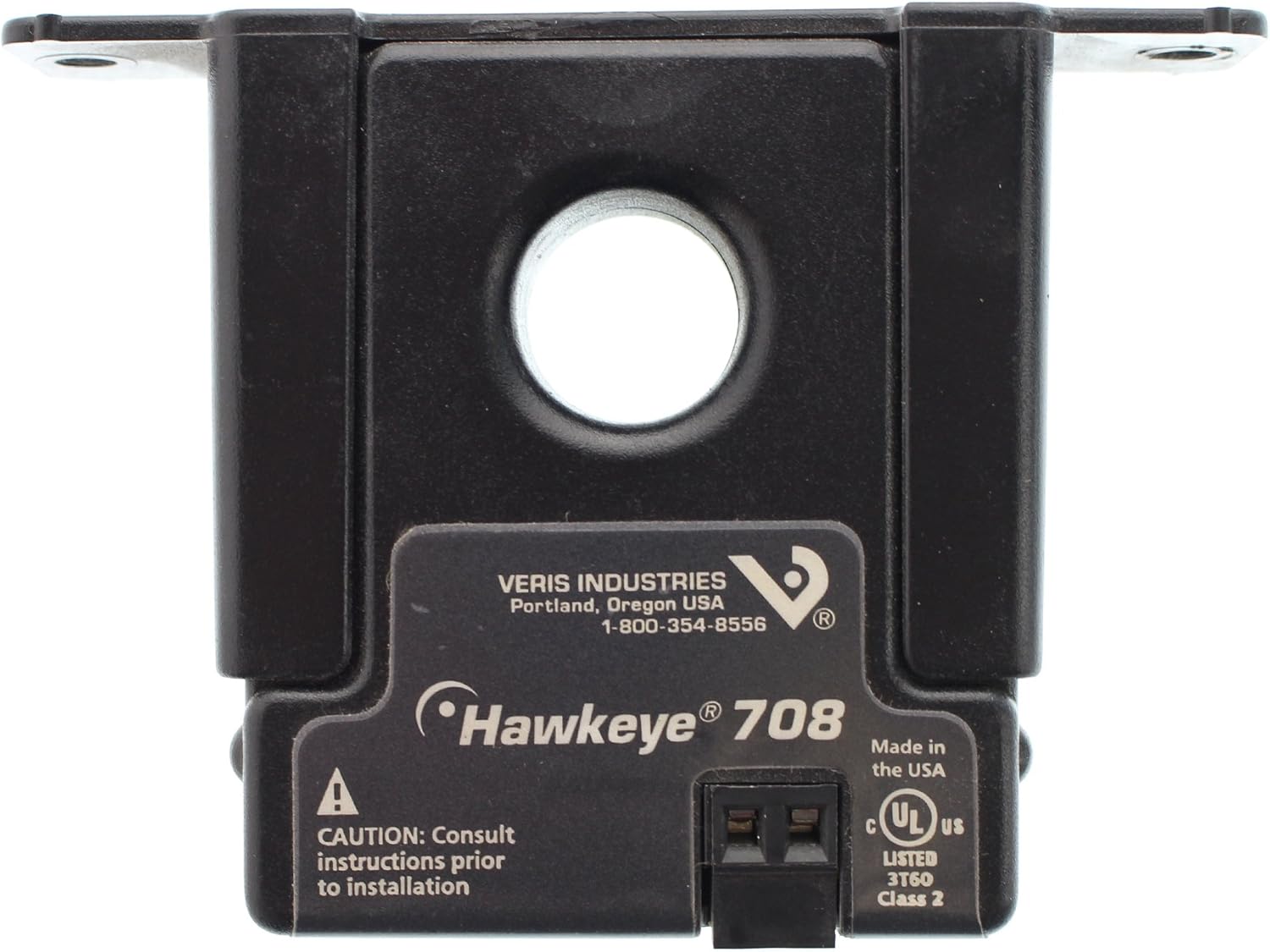

Veris H708 Current Switch 1/135A Adj. W/LED

Product Description

The Veris H708 Current Switch with adjustable solid-core provides reliable electrical protection in industrial settings. This device features a compact design that fits easily inside small enclosures. It offers precise control over electrical flow with adjustments up to 135 amps. An integrated LED indicator helps with safety and troubleshooting.

• Adjustable up to 135 amps
• Fits inside small enclosures
• LED status indicator

Product Highlights

This current switch from Veris is ideal for monitoring status on motors, machinery, and power distribution. It can detect belt loss, coupling shear, and other mechanical failures. Its small size and solid-state design ensure durability and easy installation.

Product Information

Standard Information

• Brand: Veris
• MPN: H708

Technical Specifications

• Current Setting: Adjustable up to 135 amps
• Voltage Rating: 600 VAC
• Contact Rating: 5 amps at 28 VDC
• Enclosure Rating: NEMA 1
• Mounting: Panel or DIN rail
• LED Indicator: Green (ON), Red (OFF)
• Insulation Class: 600VAC RMS (UL), 300VAC RMS (CE)
• Frequency Range: 50/60 Hz
• Temperature Range: -15 to 60 degrees Celsius
• Humidity Range: 10-90% RH non-condensing
• Terminal Block Maximum Wire Size: 14 AWG
• Terminal Block Torque: 4 in-lbs
• Approvals: UL 508, CE: EN61010-1:2001-02
