Product Information
Specifications:
Application : Building Automation Systems
Current Measurement Range : 1.25 - 50 A
Current Sensor type : Current Switch, AC
Electrical Wiring Size : 24 - 14 AWG (0.2 - 2.1 mm)
Measurement Type : AC Current

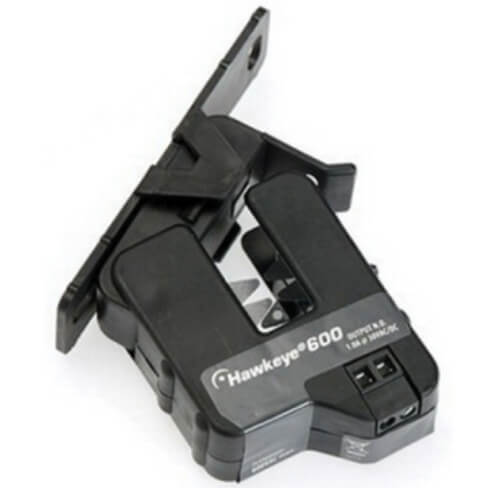

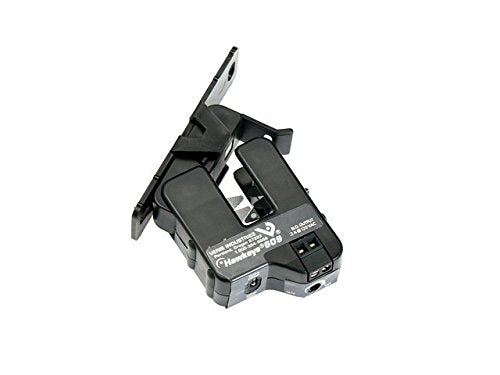

Model : H609
Monitored Frequency Range : 50 - 60 Hz
Monitored Wire Size : 0.5 (12 mm)
Mounting : Split Core
Operating Humidity : 10 - 90% RH, non-condensing
Operating Temperature : 5 - 140 F (-15 - 60 C)
Output Specifications : N.O. 0.2A @ 120 VAC/DC
Outputs : Switch output
Product Certification : UL
Product Type : Sensor
Range : HX09 Series
Relay Coil Voltage : None
Relay Contact Ratings : None
Relay Poles/Throw : None
Setpoint : Adjustable
Warranty : 5 years
