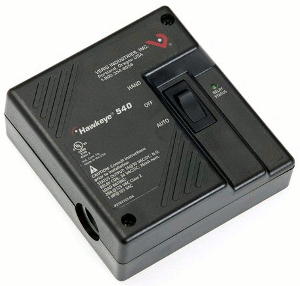

Veris Industries H540NS Field Mount Motor Control Device - 24VAC/DC Relay

Product Description

The Veris Industries H540NS is a field mount motor control device designed to manage electrical loads effectively and safely. This device features a high-quality combination switching relay and current status switch, making it suitable for various building automation systems.

• Amperage range of .025 to 15 Amps
• Compatible with 24VAC and DC relay coils
• UL listed for safety compliance

Product Highlights

This motor control device is ideal for applications requiring reliable current sensing and control, contributing to the maintenance of safe operational conditions.

Product Information

Standard Information

• Brand: Veris Industries
• Product Type: Sensor

Technical Specifications

• MPN: H540NS
• Relay Type: SPDT
• Current Measurement Range: 0.25 to 15 A
• Relay Coil Voltage: 24 V AC/DC
• Operating Temperature: -15 to 50 °C
• Relative Humidity: 10-90 % RH, non-condensing
• Output Current: 1 A at 30 V AC/DC
• Mounting Support: 4-gang junction box
