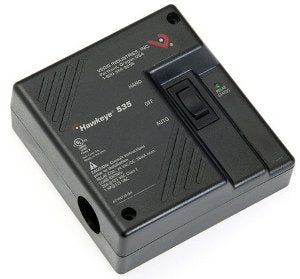

Veris Industries H535 Field Mount Motor Control Device 24V AC/DC Relay

Brand: VERIS
SKU: H535
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Veris Industries H535 is a field mount motor control device designed for effective operation in building automation systems. It features a combination switching relay, current status switch, and HOA switch with a range of .025 to 15 amps. This device has a single-pole single-throw (SPST) configuration, allowing for field-selectable options between normally open and normally closed connections. It operates with a relay coil voltage of twenty-four volts AC or DC.

  • Combination switching relay with current status indicator
  • Field selectable SPST relay for versatile applications
  • Rated for 24VAC and 24VDC power sources

Product Highlights

This motor control device is UL listed, ensuring it meets the required safety standards for electrical devices in commercial settings. The power LED indicator provides visual feedback of operation, which aids in maintenance and troubleshooting.

Product Information

Standard Information

  • Brand: Veris Industries
  • MPN: H535
Technical Specifications
Operation Temperature
-15 to 50 °C
Relative Humidity
10 to 90 % RH, non-condensing
Relay Type
Mechanical
Network Frequency
50 to 60 Hz
Maximum Load Type
Motor (1 HP at 120 V AC), Resistive (15 A at 277 V AC)
Installation
Mounts on a 4-gang junction box
Compatibility
Works with AWG 24 to AWG 14 wiring
