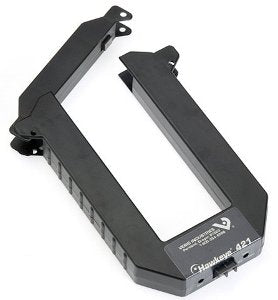

Veris Industries H421 Current Sensor 4-20mA Loop Powered Output 1000 to 2400 Amps

Product Description

The Veris Industries H421 is a current sensor designed for building automation systems. With a 4-20mA loop powered output, this sensor is ideal for measuring AC current. It can handle current ranges from one thousand to two thousand four hundred amps and features a split-core housing for easy installation and access.

• 4-20mA loop powered output
• Split-core housing for easy installation
• Suitable for high current applications (1000 to 2400 Amps)

Product Highlights

This product is RoHS compliant, ensuring it meets environmental standards.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: H421

Technical Specifications

• Measurement Type: AC current
• Current Measurement Range: 0 to 2400 A
• Current Measurement Accuracy: +/- 2 % of full scale above 240 A
• Ambient Air Temperature for Operation: -15 to 60 °C
• Relative Humidity: 10 to 90 % RH, non-condensing
• Opening Width: 61 mm
• Network Frequency: 50 to 60 Hz
• Net Weight: 909.09 g
