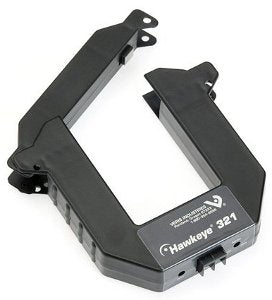

Veris Industries H321SP Current Sensor 4-20mA Loop Powered Output

Product Description

The Veris Industries H321SP is a current sensor designed for building automation systems. This model features a 4-20mA loop powered output with a split-core design for easy installation. It can measure currents in the range of zero to eight hundred Amps. The H321SP is UL listed for use on seventy-five degrees Celsius insulated conductors and complies with CE and RoHS standards.

• 4-20mA loop powered output
• Split-core housing for simple installation
• Capable of measuring up to eight hundred Amps

Product Highlights

This current sensor is essential for monitoring AC current in various applications, ensuring efficient energy management.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Current Measurement Range: 0 to 800 A
• Current Measurement Accuracy: +/- 2% of full scale above 6 A
• Ambient Air Temperature for Operation: -15 to 60 degrees Celsius
• Relative Humidity: 10-90% RH, non-condensing
• Opening Width: 61 mm
• Network Frequency: 50 to 60 Hz
• Product Certifications: UL, CE
