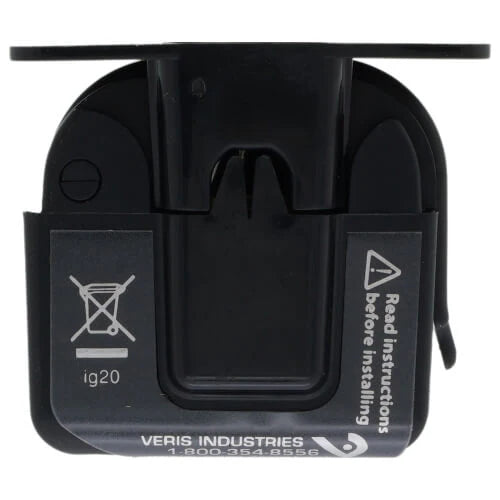

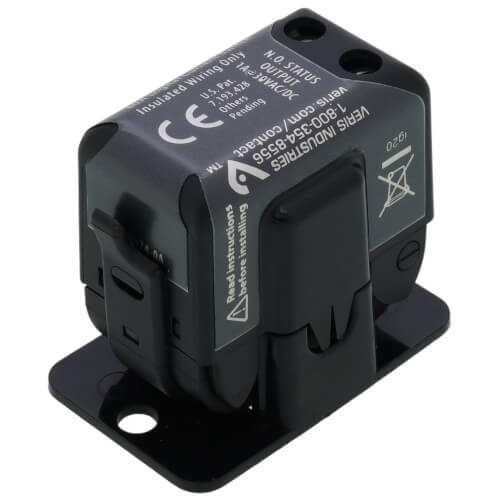

Veris H300 LV Instrument Current Transformer 0.15-60A Fixed Trip Point

Product Description

Introducing the Veris H300, an advanced LV instrument current transformer. This robust device is designed for precise overcurrent protection with its fixed trip point, ideal for various industrial applications.

• Utilizes a split-core design for easy retrofitting.
• Features a low activation current of 0.15 amp, the lowest in the industry.
• Streamlines monitoring of unit vents, exhaust fans, and other fixed loads.

Product Highlights

The H300 provides reliable performance with its durable build, ensuring operational safety and cost-effectiveness. Suitable for areas where belt loss is not a concern, it improves installation flexibility and simplifies monitoring processes.

Technical Specifications

• MPN: H300
• Brand: Veris Industries
• Current Range: 0.15 - 60 Amp
• Operation: Fixed trip point
• Weight: 2.46 lbs
• Dimensions: 4.02 inches (Length) x 3.7 inches (Width) x 1.54 inches (Height)
• Installation: Split-core for easy retrofit
• Humidity Range: 10 to 90% RH (Non-Condensing)
• Operating Temperature Range: 5 to 140°F
