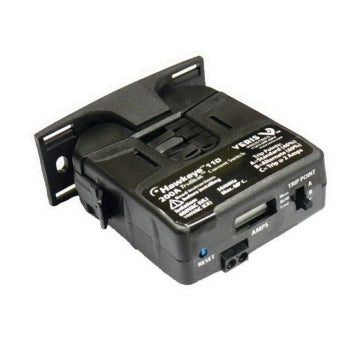

Veris Industries H11D Current Switch 2.5-200A @ 60Hz UL CE

Product Description

The Veris Industries H11D is a current switch designed for various applications in automation systems. This device provides accurate current measurements ranging from two point five to two hundred amperes at sixty hertz, making it suitable for monitoring AC currents. The built-in LCD display allows for easy reading of the current levels. This switch is part of the H11 Series and meets UL and CE certifications, ensuring compliance with industry standards.

• Auto Calibration
• Split-Core Design
• 1 A Output at 30 V AC/DC

Product Highlights

The H11D is ideal for building automation systems and is equipped with a manual reset feature. It is constructed for easy installation, featuring a split-core housing that simplifies the process of retrofitting into existing systems.

Product Information

Standard Information

• Brand: Veris Industries
• Country of Origin: US
• Type: Sensor

Technical Specifications

• Measurement Range: 2.5 - 200 A
• Type of Measurement: AC current
• Ambient Air Temperature for Operation: -15-60 °C
• Output Current: 1 A at 30 V AC/DC
• Current Measurement Accuracy: +/- 2 % of full scale
• Network Frequency: 50...60 Hz
• Relative Humidity: 10-90 % RH, non-condensing
