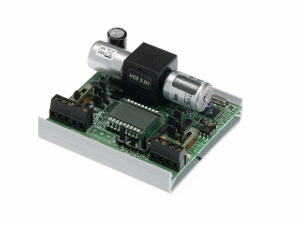

Veris Industries EP3330S Differential Air Pressure Transducer

Product Description

The Veris Industries EP3330S is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. It features a selectable output of 0-10VDC and 4-20mA, making it versatile for different applications. This transducer can be set for pressure loss alarms or manual mode alarms, and it does not have a fail-safe feature.

• Output options: 0-10VDC or 4-20mA
• Alarm settings for pressure loss or manual mode
• Compact design for easy installation

Product Highlights

This device is suitable for use in various HVAC applications and is ideal for pneumatic actuated dampers and actuators. Its operating temperature range is five to sixty degrees Celsius, and it supports a relative humidity of ten to ninety percent, non-condensing.

Product Information

Standard Information

• Country of Origin: US
• Product Type: Sensor

Technical Specifications

• MPN: EP3330S
• Pressure Measurement Accuracy: +/- 1 % FS
• Pressure Measurement Range: 3 to 15 psi (0.2 to 1 bar), 0 to 20 psi (0 to 1.35 bar)
• Dimensions: Width 125 mm, Height 89 mm, Depth 46 mm
• Ambient Air Temperature for Operation: 5-60 °C
• Wiring Technique: 3-wire
• Product Certifications: CE
