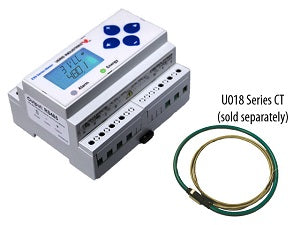

Veris Industries E51H5A E51H5 Bi-Directional BACnet MS/TP DIN Rail Meter Logg 2 Pulse

Product Description

The Veris Industries E51H5A is a bi-directional BACnet MS/TP DIN rail meter designed for monitoring power consumption. It features multiple input options and is suitable for various applications in energy management.

• Control power options include AC and DC inputs.
• Real power and energy accuracy of 0.2%.
• RS-485 communication for seamless integration.

Product Highlights

This device is ideal for HVAC and electrical applications, offering precise monitoring and logging of energy usage.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Control Power, AC: 50/60 Hz; 5VA max.; 90V min.; UL Maximums: 600V L-L (347V L-N); CE Maximums: 300V L-N (520V L-L)
• Control Power, DC: 3W max.; UL and CE: 125 to 300VDC (external DC current limiting required)
• Voltage Input: UL: 90V L-N to 600V L-L; CE: 90V L-N to 300V L-L
• Current Input: Scaling from 5A to 32,000A
• Pulse Inputs: Two sets of contact inputs for pulse accumulators
• Operating Temperature Range: -30°C to 70°C (-22°F to 158°F)
• Humidity Range: Up to 95% Relative Humidity, non-condensing
