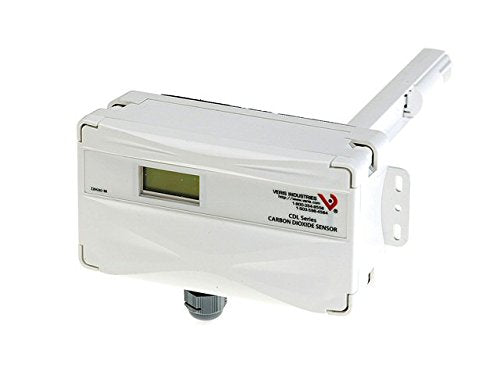

Veris CDLSXX Deluxe CO2 Duct Sensor with LCD Display

Product Description

The Veris CDLSXX Deluxe CO2 Duct Sensor is engineered for robust and reliable monitoring of carbon dioxide levels within duct systems. Integrated with an LCD display for easy readouts, this sensor is ideal for HVAC systems and air quality management.

• Employs Non-dispersive Infrared (NDIR) technology for precise CO2 measurement.
• Supports both analog and digital outputs for versatile connectivity.
• Designed for duct mounting, enabling straightforward installation.

Product Highlights

The duct mount design of the CDLSXX model allows for minimal maintenance and simple installation. With a measurement range typically from 0 to 2000 parts per million, it adapts to diverse environments, providing accurate and reliable readings.

Product Information

Standard Information

• UNSPSC Code: 46171600
• Brand: Veris Industries

Technical Specifications

• Input Power: 20 to 30VDC/24VAC; 100mA max.
• Analog Output: 4-20mA (clipped & capped)/0-5VDC/0-10VDC (selectable)
• Operating Temperature Range: 0° to 50°C
• Housing Material: High impact ABS plastic
• Measurement Range: 0-2000/5000 ppm (programmable)
• Accuracy: ±30 ppm ±2% of measured value
• EMC Conformance: EN 61000 standards
