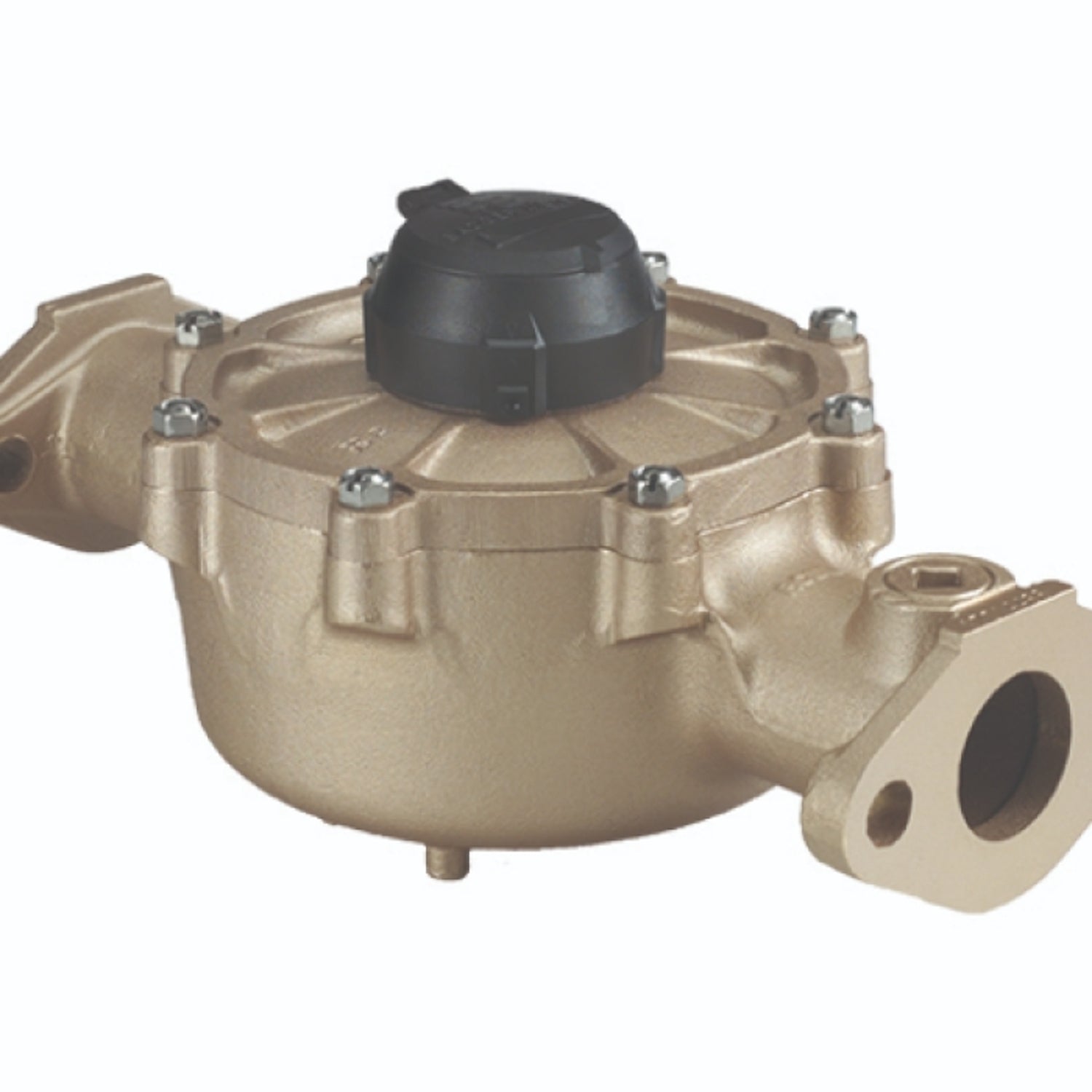

Veris Industries BGR-M35-750LNSB-TS-GAXX Nutating Disc Flow Meter 3/4 In RTR Pulse Out

Product Description

The Veris Industries Nutating Disc Flow Meter, MPN BGR-M35-750LNSB-TS-GAXX, is designed for measuring liquid flow. This meter features a flange fitting size of three-quarters of an inch and is suitable for various applications.

• Application: Flow Measurement
• Connections: Cast Iron Included
• Flow Measurement Range: Zero point five to twenty-five gallons per minute

Product Highlights

This flow meter provides reliable flow measurement with an accuracy of plus or minus one point five percent of full scale and a repeatability of plus or minus zero point five percent. It is made from lead-free bronze alloy, ensuring compliance with NSF/ANSI standards.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Sensor Type: Nutating Disc Positive Displacement
• Operating Pressure: 150 psi Max
• Operating Fluid Temperature: Zero to forty-nine degrees Celsius
• Display Type: Dial with Totalizer (Gallons)
• Medium: Liquids, No Particulates
• Housing Material: Lead-Free Bronze Alloy
• Flow Measurement Accuracy: ±1.5% of Full Scale
• Flow Measurement Repeatability: ±0.5%
• Outputs: Pulse Output
• Totalizer Resettable: No
• Standards: NSF/ANSI Standards 61 and 372
