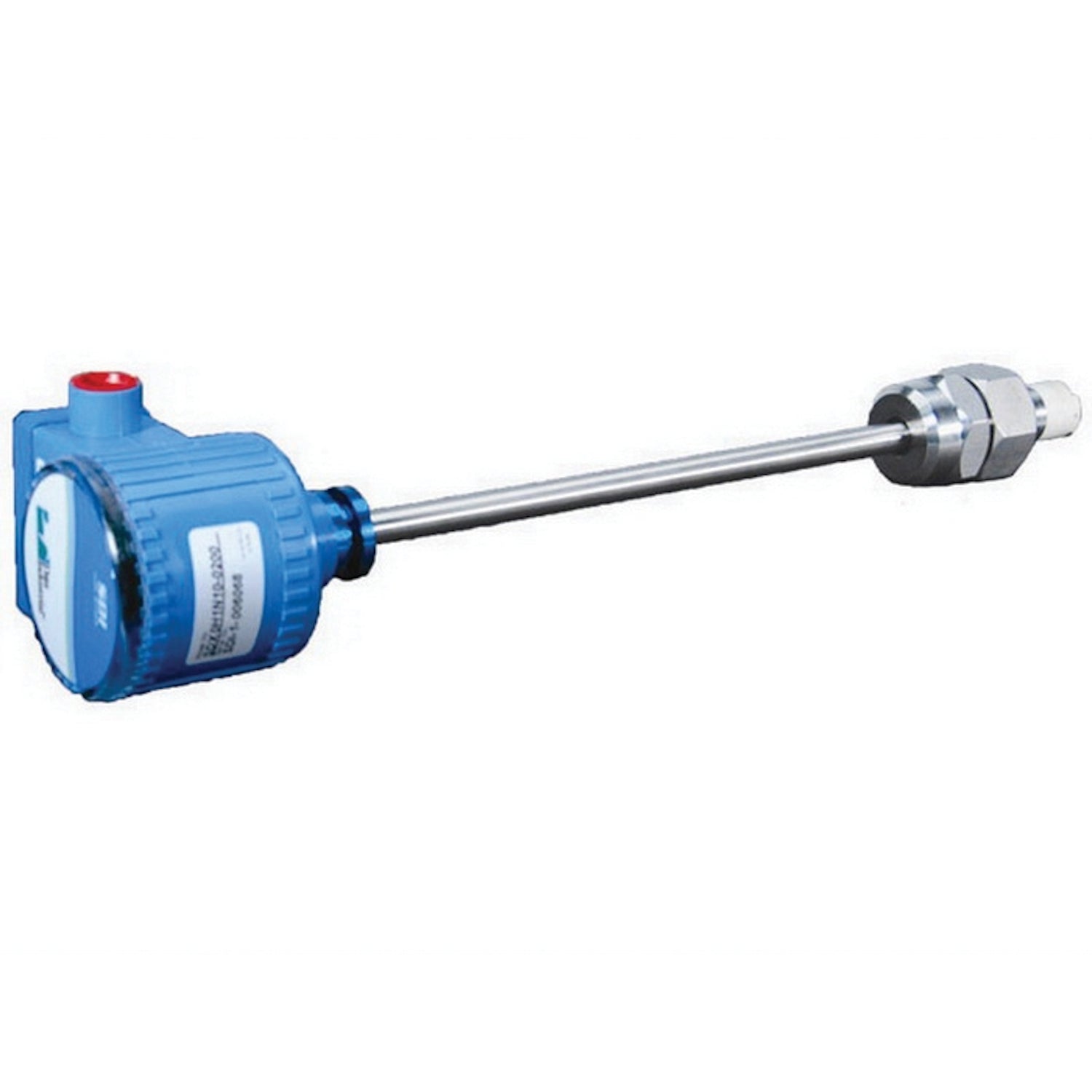

Veris Industries BGR-8SDI0H1N10-0200 Hot Tap Insert Liquid Flow Sensor

Product Description

The Veris Industries BGR-8SDI0H1N10-0200 is a hot tap insert liquid flow sensor designed for measuring flow in water-based liquids. This sensor operates within a flow measurement range of one foot per second to twenty feet per second. It is suitable for use with pipe materials such as copper, polymer, steel, and stainless steel. The device features a stainless steel and polymer tip for enhanced durability.

• Application: Flow Measurement
• Hot-Tap Capability: Yes
• Field Programmable: Yes

Product Highlights

This flow sensor is ideal for applications requiring real-time measurement in various environments. It connects easily to existing systems and offers a scaled pulse output.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: BGR-8SDI0H1N10-0200
• Fitting Size: One and a half to ten inches
• Flow Measurement Accuracy: ±2%
• Flow Measurement Repeatability: ±0.5%
• Operating Fluid Temperature: Fourteen to one hundred fifty degrees Fahrenheit
• Output Specifications: Scaled Pulse
• Measurement Type: Flow
• Sensor Type: Impeller
