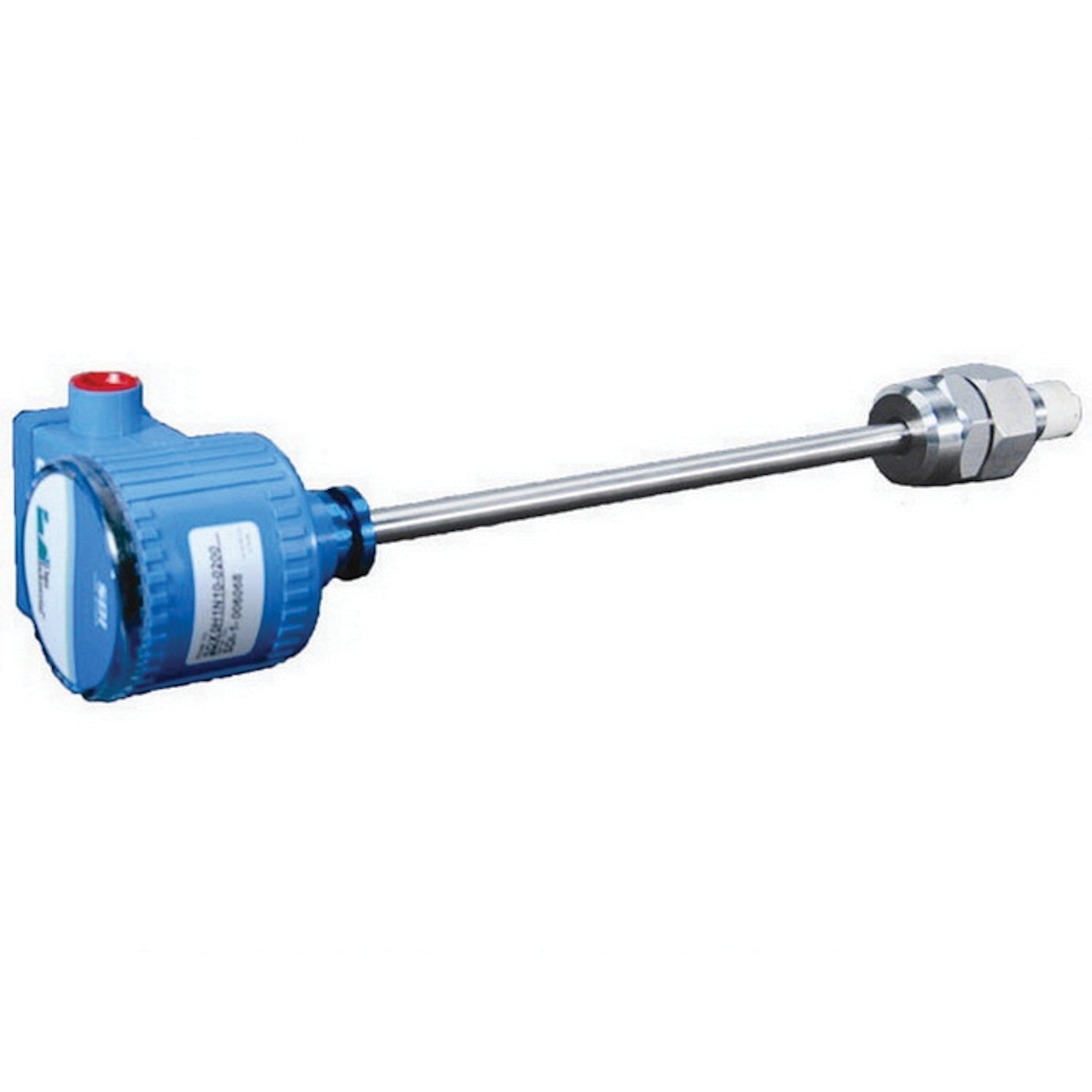

Veris Industries BGR-8SDI0H1N00-0200 Standard Frequency Pulse Hot Tap Insert Liquid Flow Sensor

Product Description

The Veris Industries BGR-8SDI0H1N00-0200 is a standard frequency pulse hot tap insert liquid flow sensor. Designed for measuring flow in water-based liquids, it fits pipe sizes from one and a half to ten inches. This sensor supports hot-tap installation and is made with stainless steel and polymer materials. Its operating temperature range is from fourteen to one hundred fifty degrees Fahrenheit. The product is field programmable, allowing users to customize settings for specific applications.

• Application: Flow measurement
• Accuracy: Plus or minus two percent
• Flow Measurement Range: One to twenty feet per second

Product Highlights

The BGR-8SDI0H1N00-0200 flow sensor is robust and reliable for various applications. It offers easy integration into existing systems and ensures accurate flow measurements with minimal maintenance required.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Measurement Accuracy: Plus or minus two percent
• Flow Measurement Range: One to twenty feet per second (0.3 to 6 m/s)
• Operating Fluid Temperature: Fourteen to one hundred fifty degrees Fahrenheit (-10 to 65 degrees Celsius)
• Pipe Material: Copper, Polymer, Steel, Stainless Steel
• Hot-Tap Option: Yes
• Output Specifications: Scaled pulse output
• Flow Sensor Type: Impeller
• Medium: Water-based liquids
