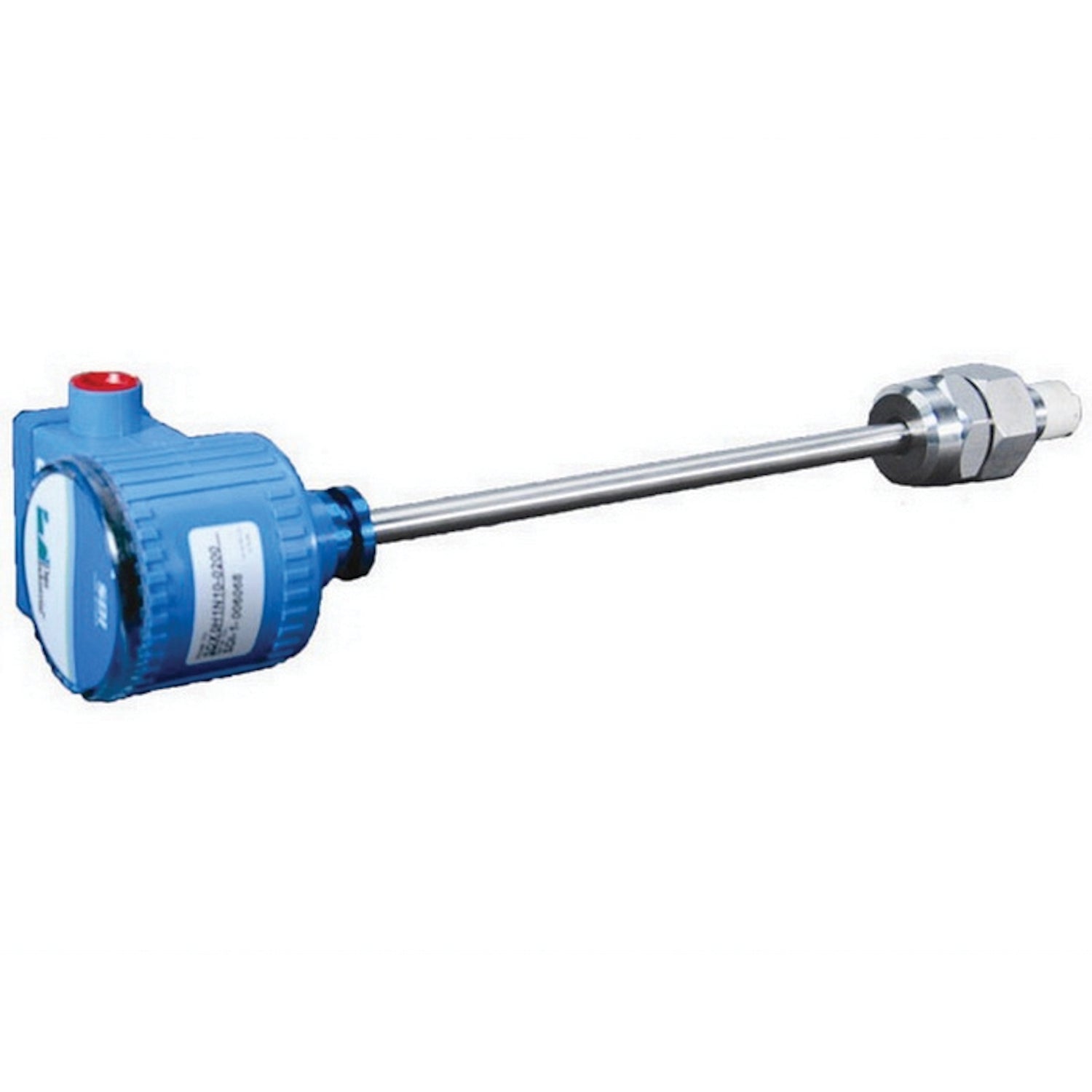

Veris Industries BGR-8SDI0D1N10-0200 Direct Insert Liquid Flow Sensor 4 to 20 mA 1-1/2 to 10 in

Product Description

The Veris Industries BGR-8SDI0D1N10-0200 is a direct insert liquid flow sensor designed for the measurement of water-based liquids. This model operates with a 4 to 20 milliamp output and is suitable for pipes ranging from one and a half inches to ten inches in diameter. It is constructed from durable stainless steel and PPS plastic for long-lasting performance.

• Flow Measurement Range: One to twenty feet per second (0.3 to 6 meters per second)
• Field programmable for flexible installation
• Hot-tap option allows for installation without interrupting service

Product Highlights

This flow sensor is essential for applications requiring precise flow measurement. Its impeller type design ensures high repeatability in measurements, making it ideal for various industrial and commercial settings.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: BGR-8SDI0D1N10-0200
• Flow Sensor Type: Impeller
• Fitting Size: 1.5 to 10 inches
• Operating Fluid Temperature: 14 to 150 °F (-10 to 65 °C)
• Flow Measurement Accuracy: ±2%
• Flow Measurement Repeatability: ±0.5%
• Outputs: Pulse output
• Pipe Material Compatibility: Copper, polymer, steel, stainless steel
