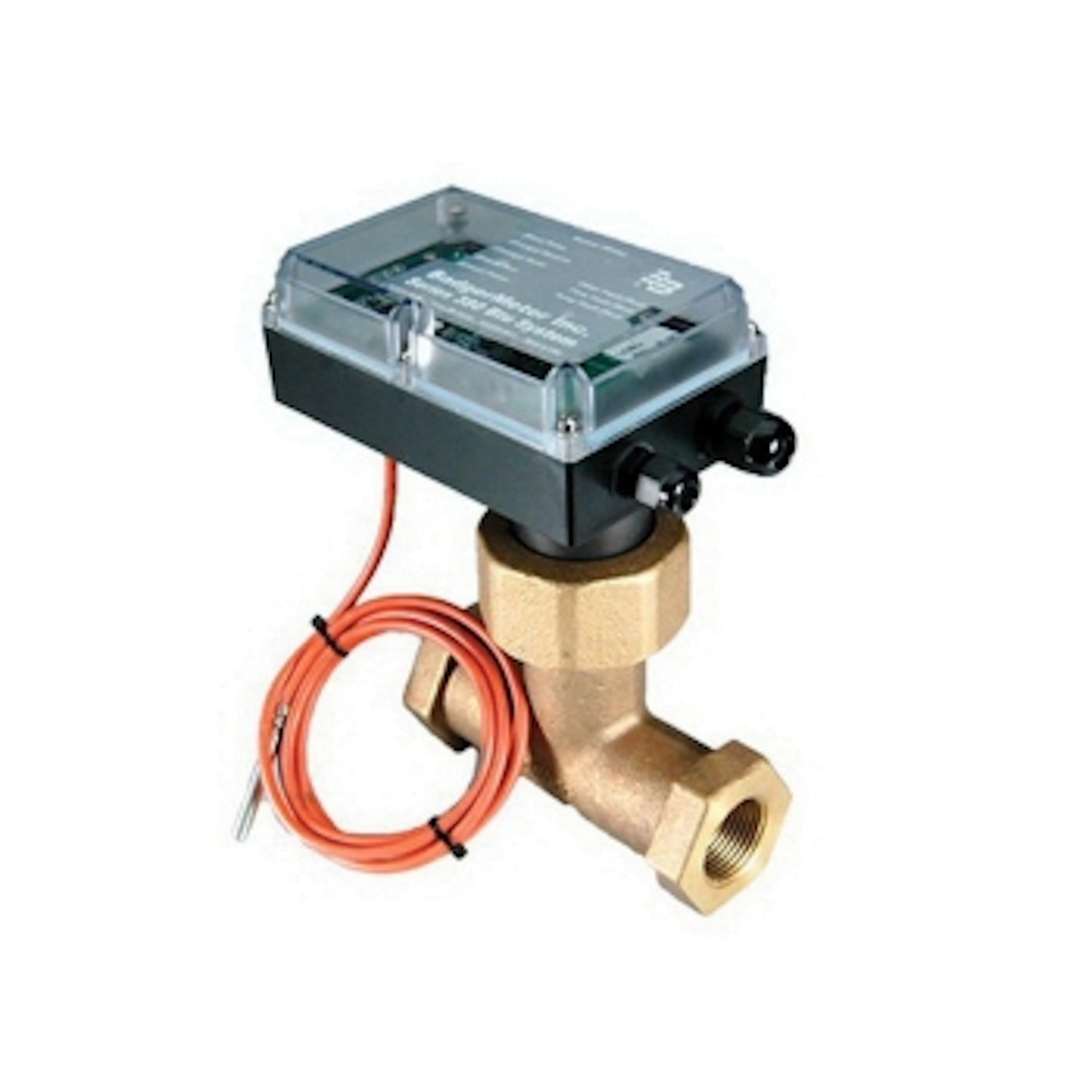

Veris Industries BGR-8380220000-1202 BTU System Hot and Cold Service Tee 2 in

Product Description

Veris Industries BGR-8380220000-1202 is a BTU system designed for both hot and cold service applications. This 2-inch tee meter is ideal for flow measurement and BTU determination. It features advanced communication protocols like Modbus and BACnet, making it suitable for integration in various energy management systems.

• Application: Flow and BTU determination
• Field programmable with scaled pulse output
• Fitting type: Threaded, compatible with various pipe materials

Product Highlights

This product is versatile, supporting energy unit measurements including BTU and kWh. The meter is designed for water-based liquids and provides reliable accuracy for energy consumption analysis.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: BGR-8380220000-1202

Technical Specifications

• Fitting Size: 2 In NPT
• Flow Measurement Range: 10.5 - 157.3 GPM (40 - 595 LPM)
• Operating Fluid Temperature: 20 - 260 °F (-6.7 - 126.7 °C)
• Flow Sensor Type: Impeller
• Flow Measurement Accuracy: ±2%
• Output Specifications: Scaled Pulse
• Pipe Material: Copper, Polymer, Steel, Stainless Steel
• Measurement Type: BTU
• Temperature Measurement Accuracy: ±0.5%
• Temperature Measurement Range: 20 - 260 °F (-6.7 - 126.7 °C)
