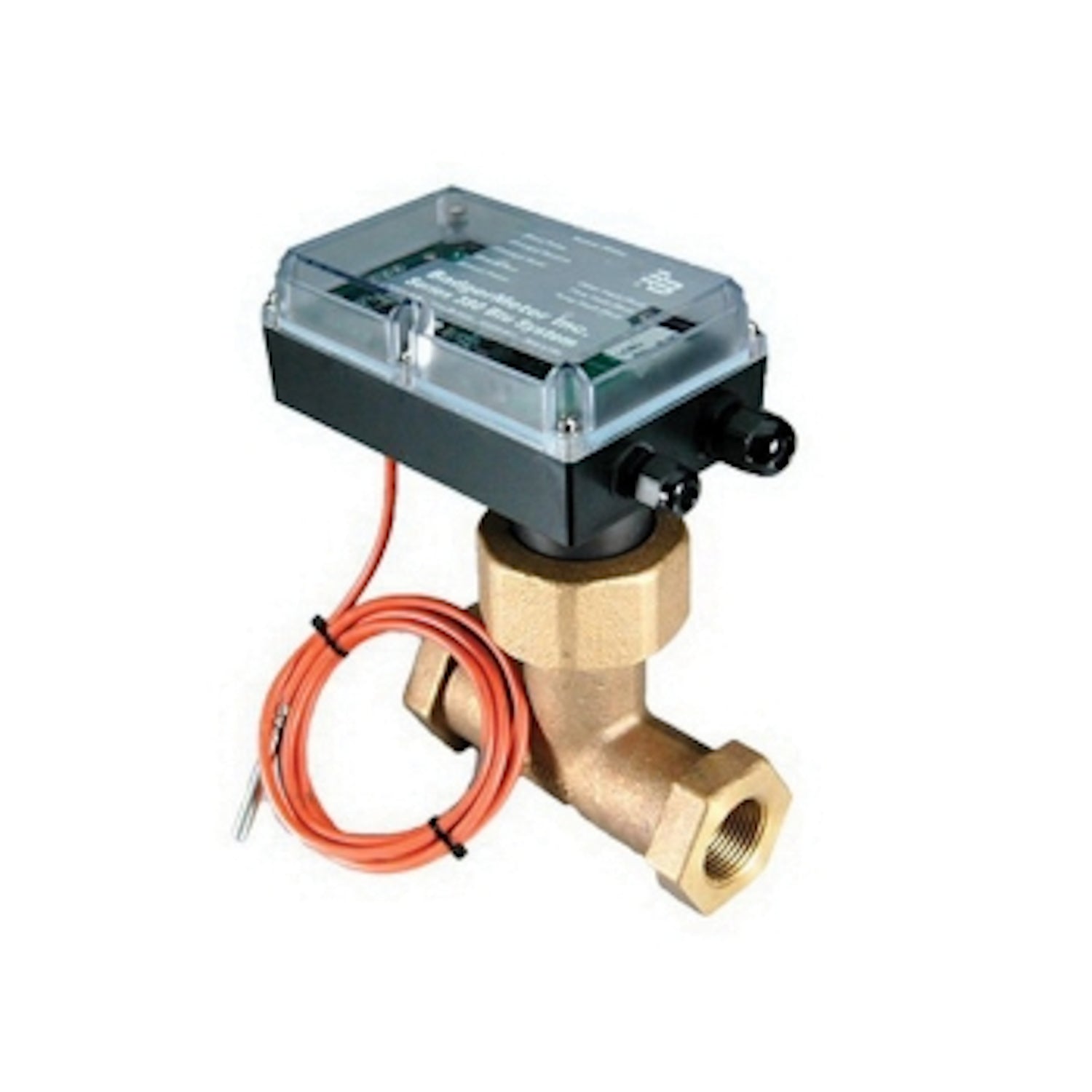

Veris Industries BGR-8380215000-1202 Hot and Cold Service BTU System Tee Meter 1-1/2 In NPT

Product Description

The Veris Industries BGR-8380215000-1202 is a hot and cold service BTU system tee meter designed for measuring flow and BTU values accurately. This unit features versatile communication options including Modbus and BACnet, ensuring compatibility with various systems. It primarily measures water-based liquids and operates effectively in temperatures ranging from twenty to two hundred sixty degrees Fahrenheit.

• Application: Flow and BTU determination
• Communication: Modbus (RTU), BACnet (MS/TP)
• Field Programmable: Yes

Product Highlights

This sensor is ideal for applications that require energy measurement, offering multiple energy units such as BTU and kWh. The robust construction includes brass and polymer fittings, ensuring durability across various installations.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Fitting Size: 1.5 In NPT
• Flow Measurement Accuracy: ±2%
• Flow Measurement Range: 6.4 - 95.2 GPM (24 - 360 LPM)
• Operating Temperature: 20 - 260 °F (-6.7 - 126.7 °C)
• Output Specifications: Scaled Pulse
• Flow Sensor Type: Impeller
• Measurement Type: BTU
• Pipe Material: Copper, Polymer, Steel, Stainless Steel
