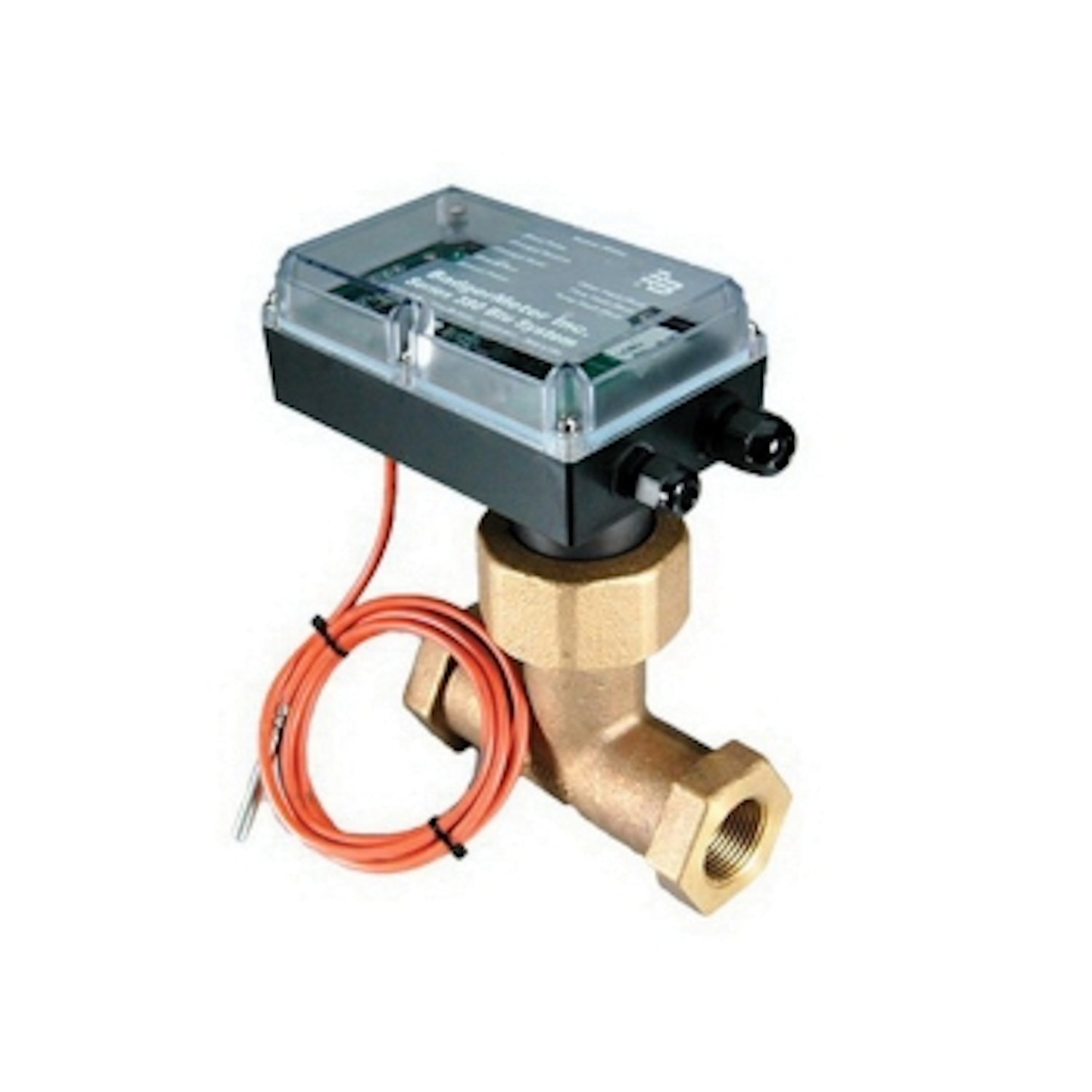

Veris Industries BGR-8380212000-1202 BTU System Tee Meter 1-1/4 In NPT Pulse Output

Product Description

The Veris Industries BGR-8380212000-1202 is a BTU system designed for hot and cold service. It features a one and one-quarter inch NPT tee fitting. This device operates using a pulse output and supports Modbus and BACnet protocols.

• Application: Flow and BTU determination
• Communication: Modbus (RTU), BACnet (MS/TP)
• Field Programmable: Yes

Product Highlights

This device measures the energy content in water-based liquids accurately and can handle a wide range of temperatures. It features a brass and polymer construction for durability.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Fitting Size: 1.25 In NPT
• Flow Measurement Accuracy: ±2%
• Flow Measurement Range: 4.7 - 69.9 GPM (17 - 265 LPM)
• Operating Fluid Temperature: 20 - 260 °F (-6.7 - 126.7 °C)
• Pipe Material: Copper, Polymer, Steel, Stainless Steel
• Output Specifications: Scaled Pulse
• Temperature Measurement Accuracy: ±0.5%
• Totalizer Quantities: 1
