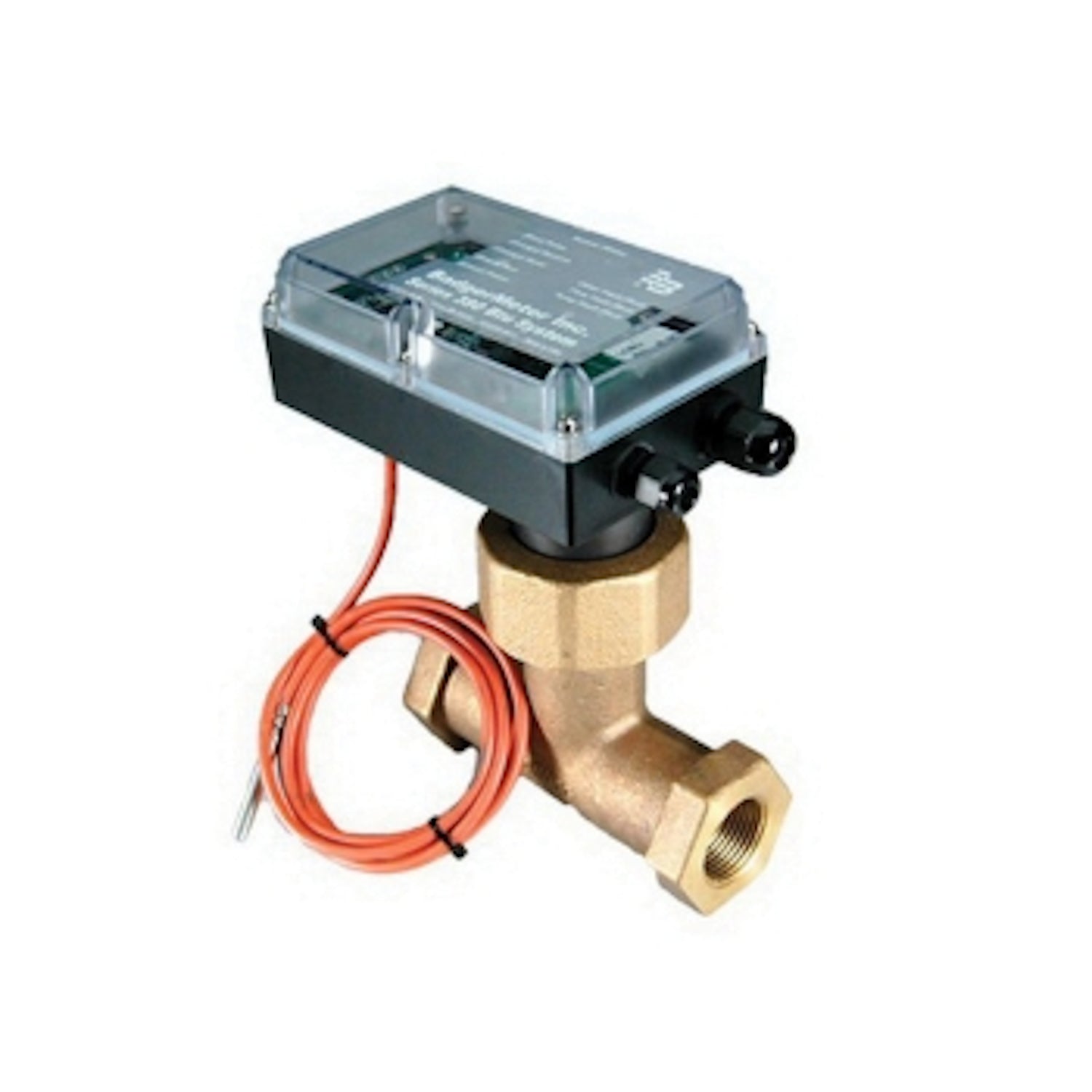

Veris Industries BGR-8380207000-1202 BTU System Hot and Cold Service 3/4 In Tee NPT

Product Description

The Veris Industries BGR-8380207000-1202 is a BTU system designed for both hot and cold service applications. It features a three-quarter inch NPT tee connection, allowing for easy integration into existing systems. The unit supports pulse output and communicates via Modbus and BACnet protocols.

• Application: Flow and BTU determination
• Communication: ModBus (RTU), BACnet (MS/TP)
• Field Programmable: Yes

Product Highlights

This sensor is ideal for measuring the flow and thermal energy in water-based liquids. Its field programmability and compatibility with standard communication protocols make it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: BGR-8380207000-1202
• Fitting Size: 0.75 In NPT
• Fitting Type: Threaded
• Flow Measurement Range: 1.7 - 24.7 GPM (6 - 93 LPM)
• Flow Measurement Accuracy: ±2%
• Operating Temperature: 20 - 260 °F (-6.7 - 126.7 °C)
• Output Specifications: Scaled Pulse
• Pipe Material: Copper, Polymer, Steel, Stainless Steel
