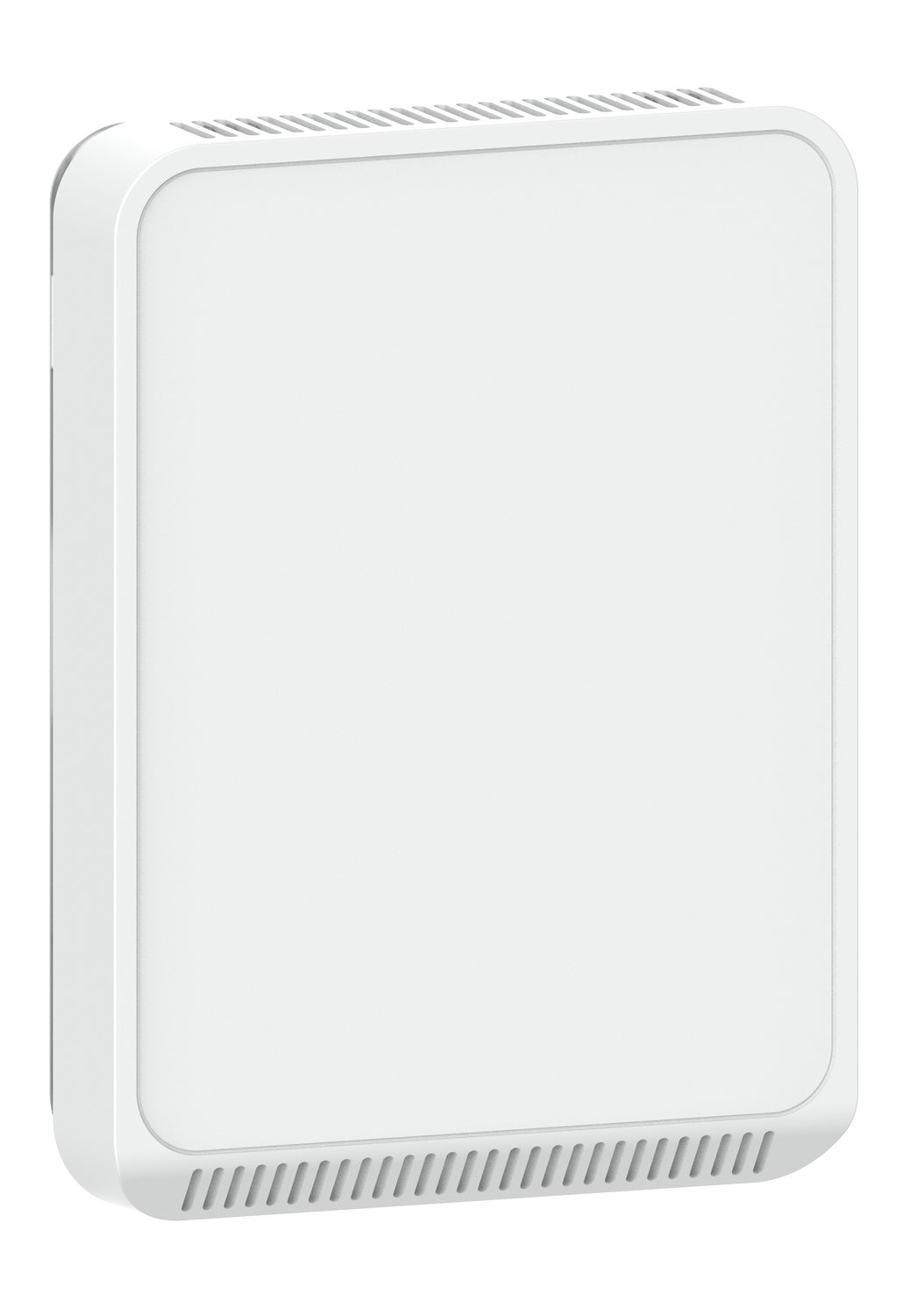

Veris HW2XA2R SpaceLogic Room Unit Power 24V AC 10K US Thermistor

Product Description

The Veris HW2XA2R is a humidity sensor designed for wall mounting, suitable for HVAC and temperature control applications. This device features replaceable humidity measurement with a two percent accuracy along with temperature measurement capabilities using a 10K US thermistor.

• Compatible with BAS controllers, offering outputs of 4 to 20mA, 0 to 5V DC, or 0 to 10V DC.
• Available with various user interfaces: touchscreen, LCD, or blank options.
• Includes dual sensing for humidity and temperature.

Product Highlights

The HW2XA2R is ideal for applications in living spaces where humidity and temperature control are crucial. It is designed for easy installation with a wall-mounting option.

Product Information

Standard Information

• Brand: Veris Industries
• Type: Sensor

Technical Specifications

• Height: 85 mm
• Width: 115 mm
• Depth: 24 mm
• Output Type: Analog
• Humidity Setting Range: 0-100 %
• Temperature Setting Range: 10-35 °C, 0-50 °C
• Power Supply Voltage: 20...30 V DC, 24 V AC
• Network Frequency: 50 Hz, 60 Hz
